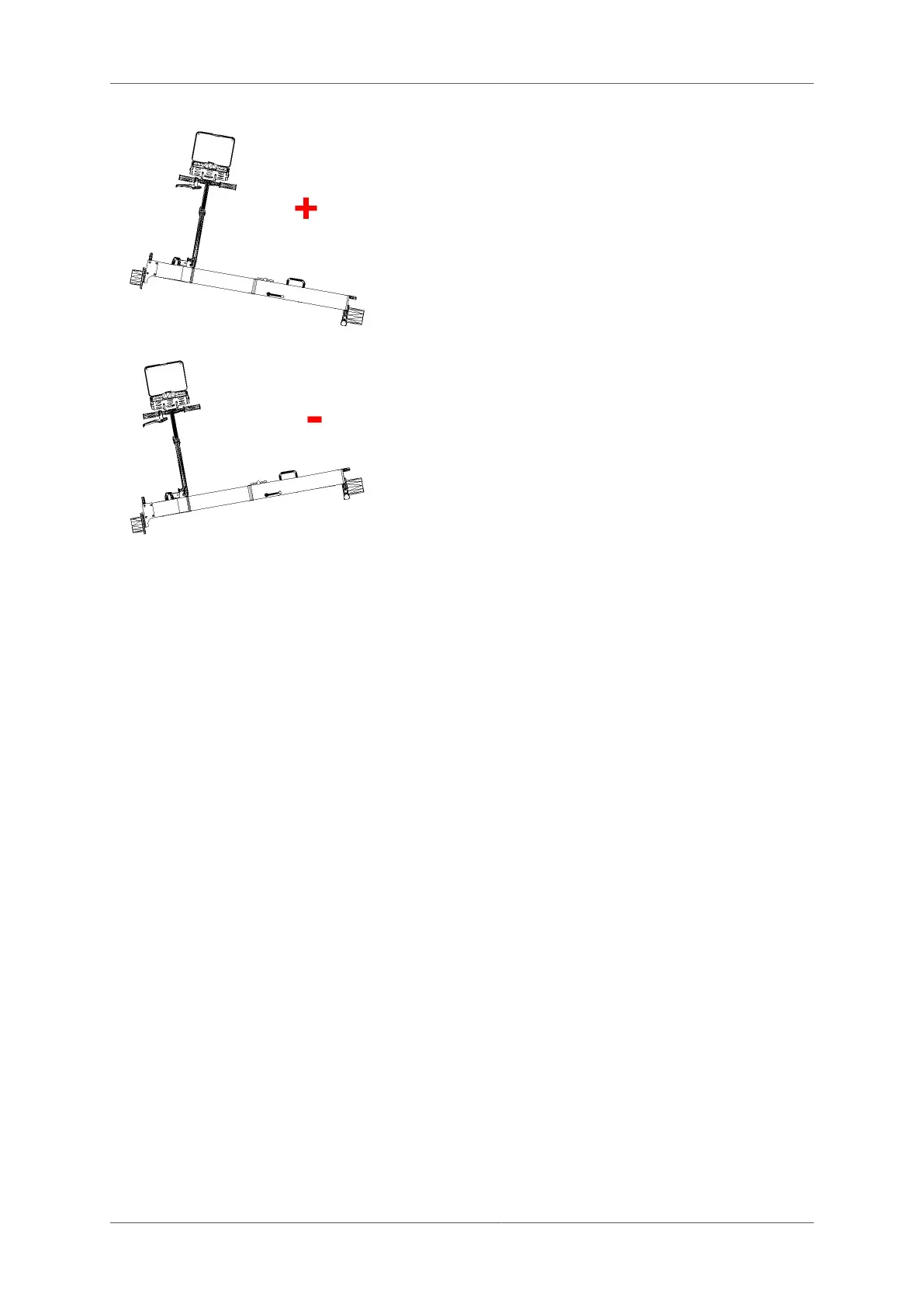

If the left railhead is above the right railhead, the sign of
the cant is POSITIVE.
If the left railhead is below the right railhead, the sign of
the cant is NEGATIVE.
5.1.4 Stationing
The stationing is measured continuously during the measurement process. Increasing or
decreasing stationing is identified based on the orientation of the trolley in the software.
5.2 Profiler FX
Profiler 120 FX successor of the Profiler 110 FX. No operational differences.
5.2.1 Operation
The Profiler FX is used to measure single points, or profiles in automatic mode, perpendicular
to the track center line (TCL).
