System component Description
■
Power supply for the field computer
(voltage in accordance with specification
of the battery).
GBC 5000
Battery Column

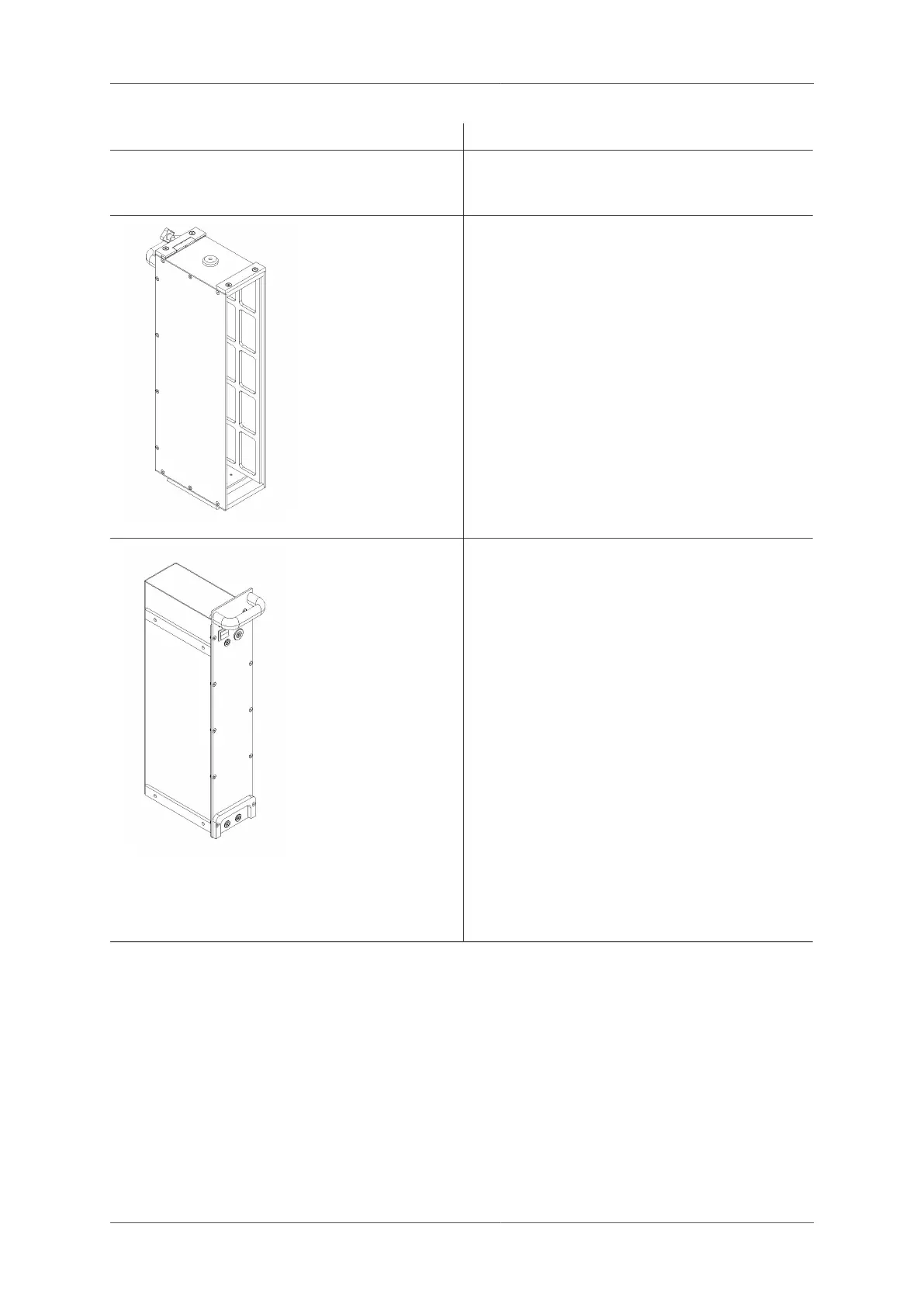

The battery column GBC 5000 is used with
the system GRP/IMS 5000.
The laser scanner is installed on top of
the battery column GBC 5000. It ensures a
measuring position of the high-speed laser
scanner approx. 1 meter above the rail head.
GEB 5000 / GEB 5010
Battery Module
The battery module GEB 5000 (17 Ah,
lead) or GEB 5010 (40 Ah, lithium-ion) for
the battery column GBC 5000 provides the
power for all system components and has
the following connections:
■
Power supply for the high-speed laser
scanner (24V DC).
■
Power supply for the trolley integrated
sensors and electronic (12V DC).
■
Power supply for the field computer
(voltage in accordance with specification
of the battery).
■
Power supply for the GNSS.
■
Power supply for the radio modem.
