Ammann ARR 1575 - Page 123

121ARR1575
557D005
WORKSHOP MANUAL

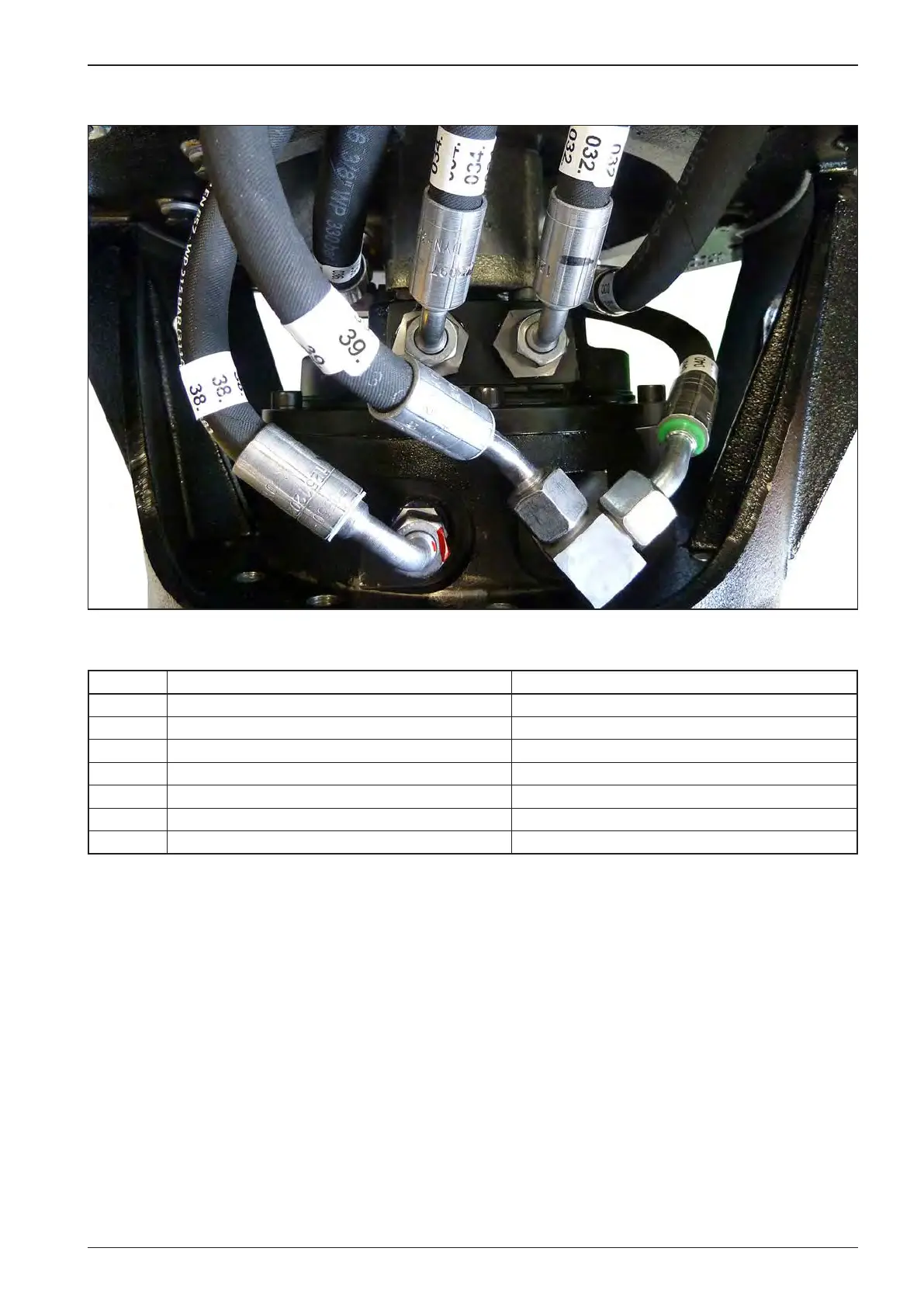

Drum, front right
Drum hose, front right
No. from to
30 Vibration motor front Valve block A1
32 Travel circuit B forward Hydraulic block right
34 Travel circuit A reverse Travel pump A – T neck
36 Vibration motor, front, connection rear Vibration interface – angled divider neck
38 Travel motor brake, front right Travel motor brake, left – L neck
39 Leaked oil – travel motor, front right – L neck Leaked oil – travel motor, front left – L neck
40 Leaked oil – travel motor, front right – L neck Leaked oil vibration motor front
