Ammann ARR 1575 - Valve Block Identification and Connections

122 ARR1575
557D006
7 Front drum
Drum, rear left
Drum hose, rear left
No. from to

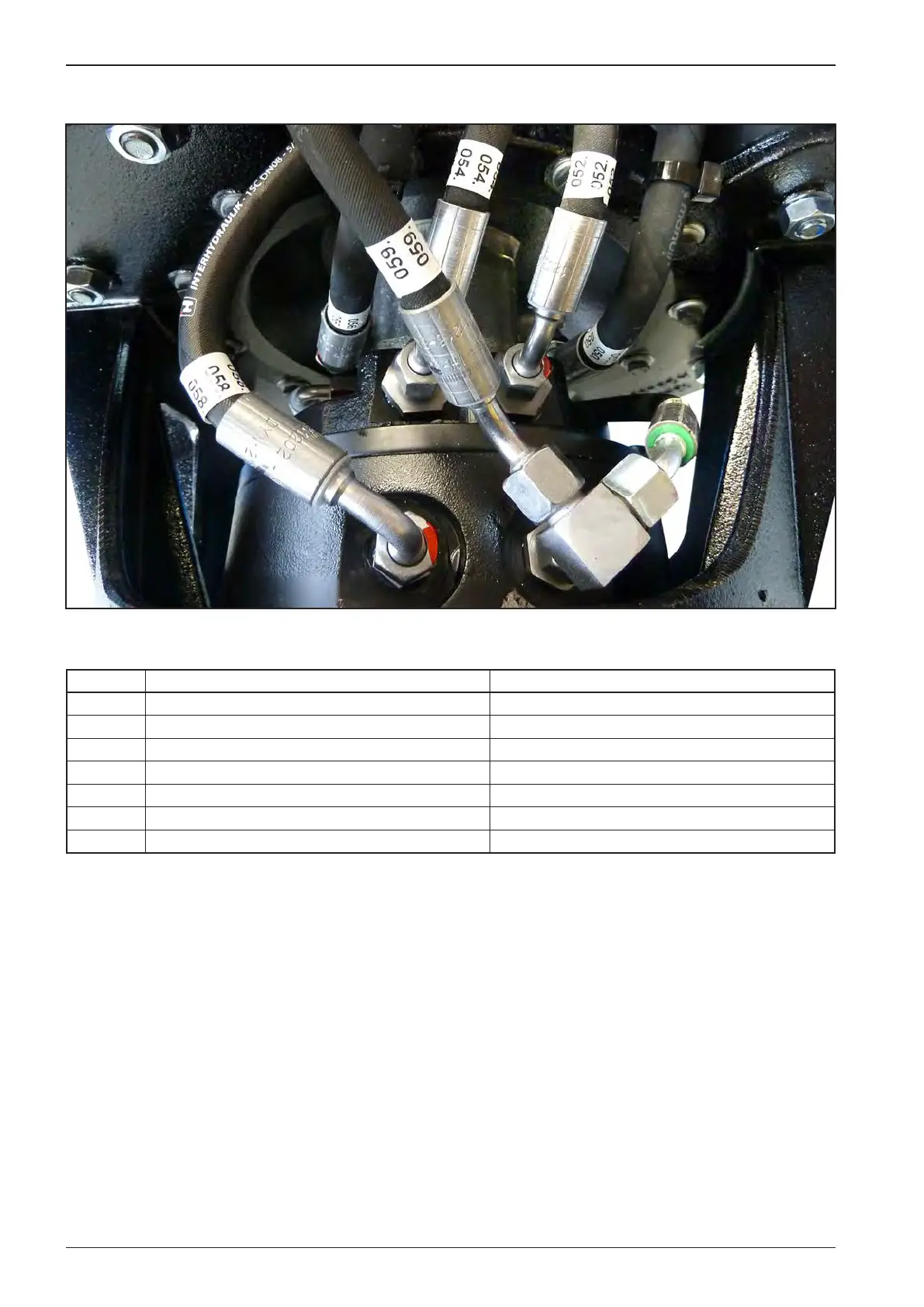

50 Vibration motor rear, connection rear Interface, rear, angled neck
52 Travel circuit B forward Interface, rear
54 Travel circuit A reverse Interface, rear
56 Vibration motor rear, connection front Interface, rear, angled neck
58 Travel motor brake, rear left Travel motor brake, rear right – L neck
59 Leaked oil – travel motor, rear left – L neck Leaked oil – travel motor, rear right – L neck
60 Leaked oil – travel motor, rear left Leaked oil – vibration motor, rear
