134 ARR1575

557D267

557D268

557D269

557D270

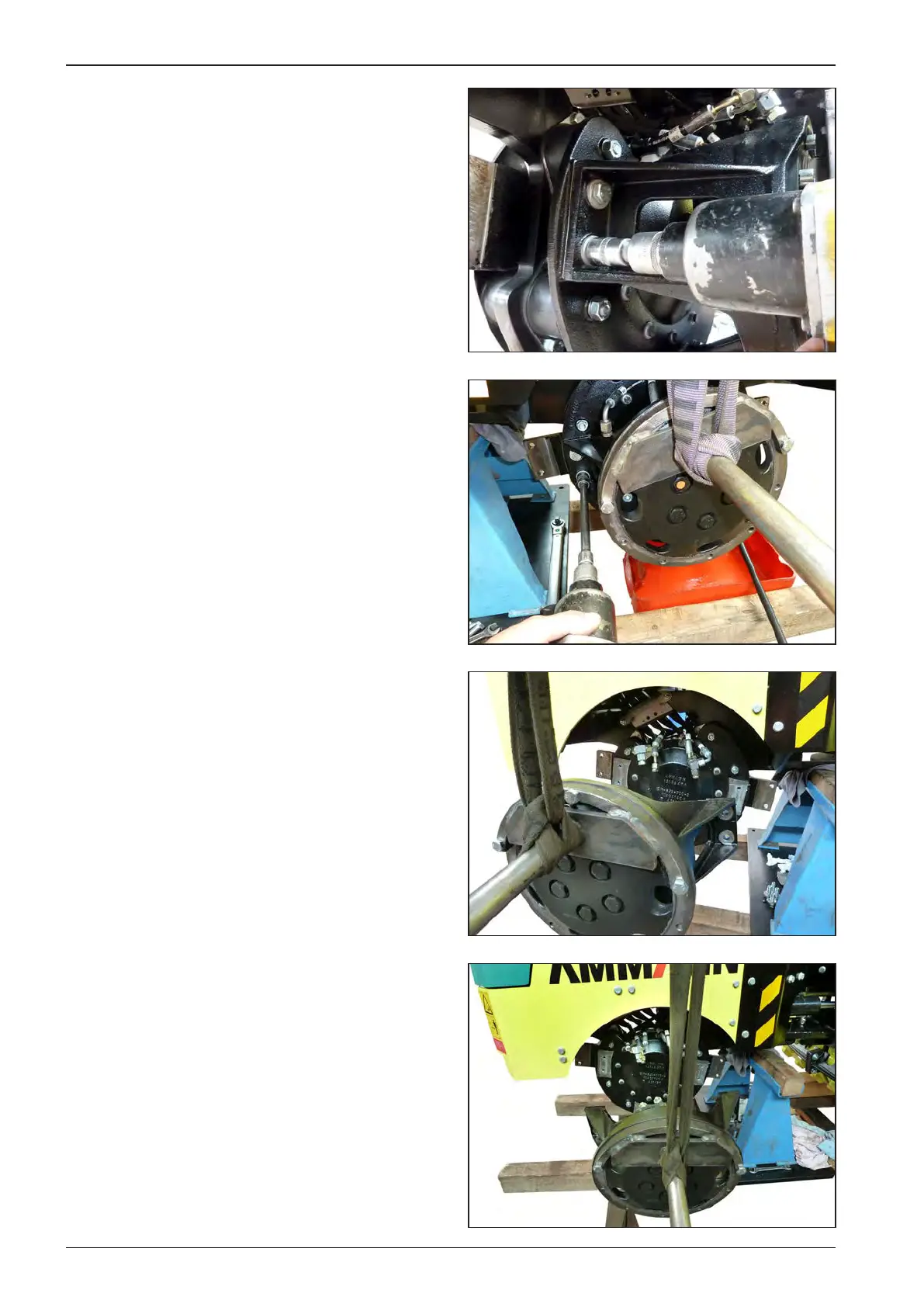

7 Front drum

Remove the screws of the travel hydraulic motor attachment.

Remove the travel hydraulic motor and put it aside.
