135ARR1575

557D272

557D273

557D274

WORKSHOP MANUAL

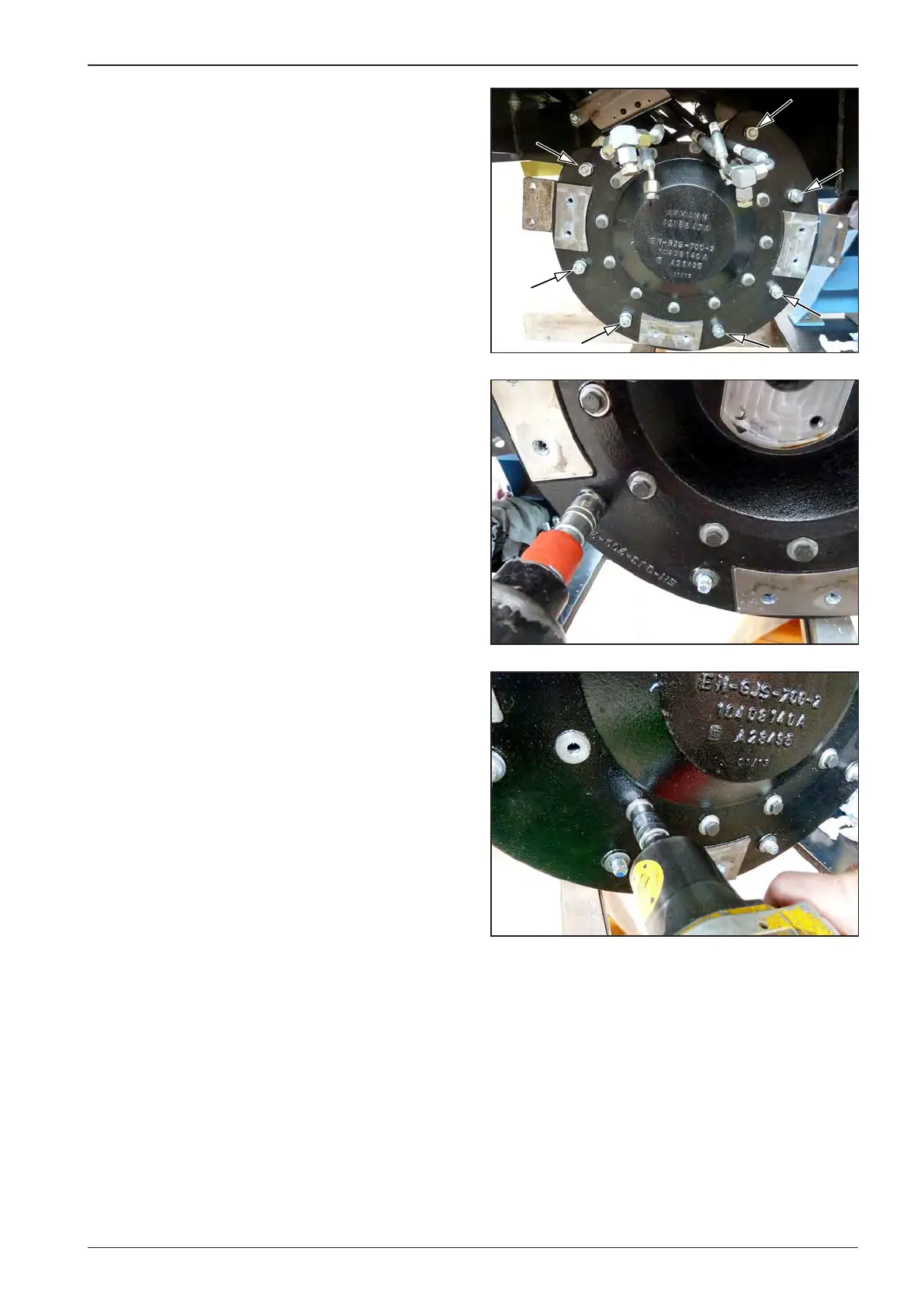

Remove the nuts on the gearbox cover.

Put an oil drip container under the gearbox.

Remove the screws on the gearbox cover.
