Ammann ARR 1575 - Page 138

To Next Page

To Previous Page

136 ARR1575

557D275

557D276

557D277

557D278

7 Front drum

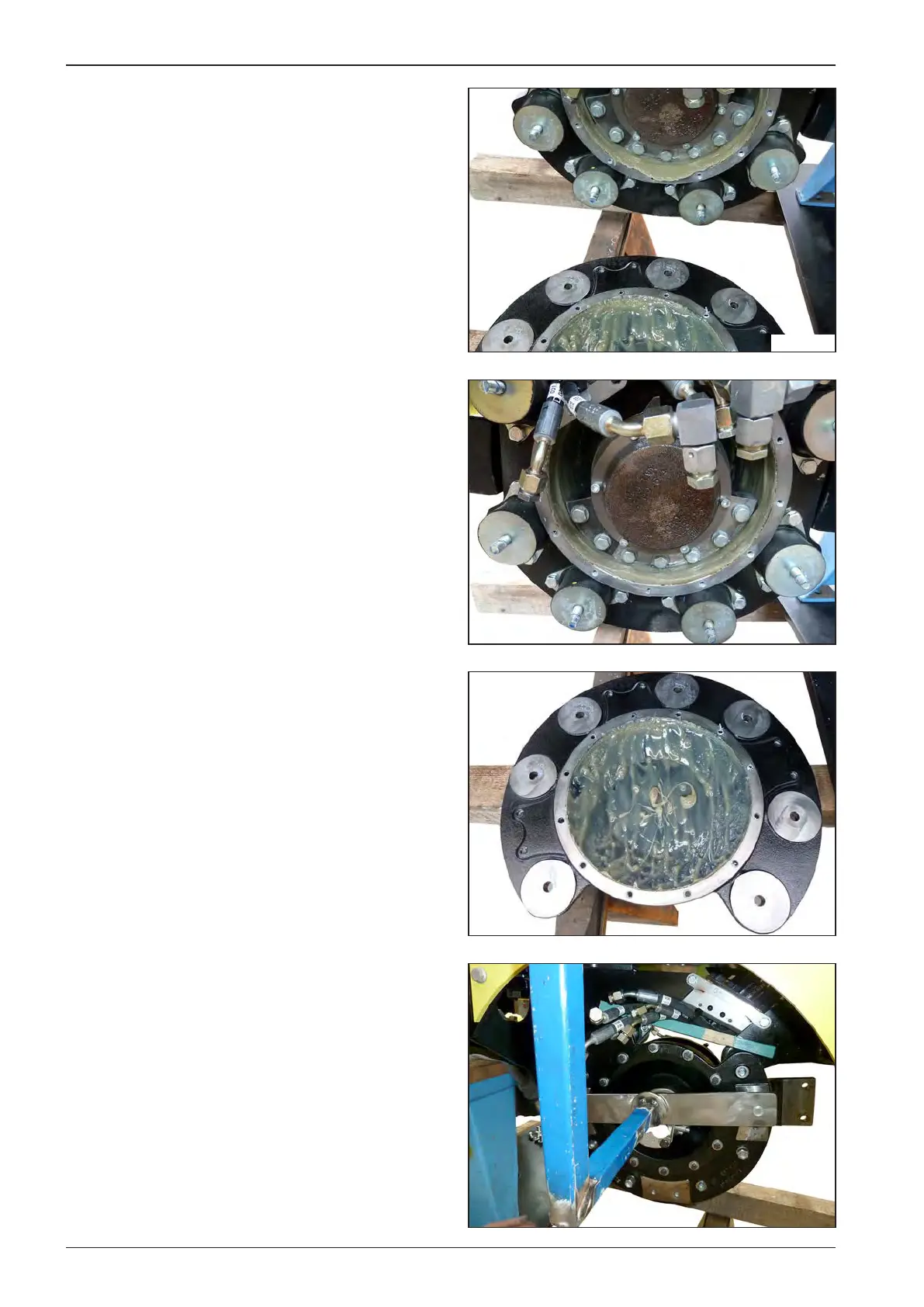

Put the gearbox cover aside.

Grease comes out of the gearbox.

The same amount of grease then must be relled during reas-

sembly.

Store the gearbox cover safely for reuse.

Install the aid on the gearbox cover.

Hang the aid on acrane.
