Ammann ARR 1575 - Page 144

To Next Page

To Previous Page

142 ARR1575

557D324

557D325

557D326

557D327

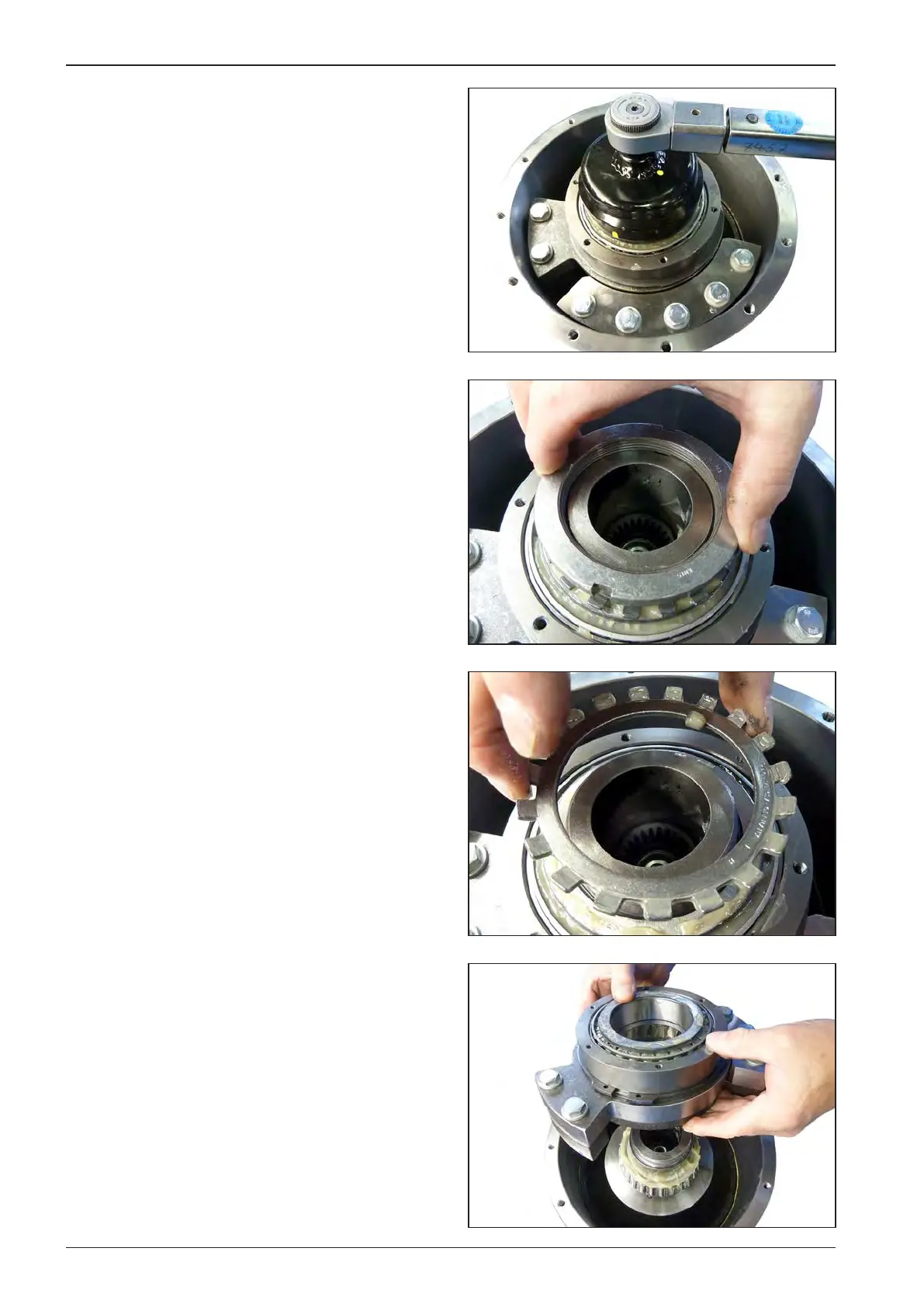

7 Front drum

Loosen the grooved nut lock.

Remove the grooved nut.

Remove the grooved nut lock.

Lift the vibration unit from the shaft.
