Ammann ARR 1575 - Page 145

To Next Page

To Previous Page

143ARR1575

557D328

557D329

557D330

557D331

WORKSHOP MANUAL

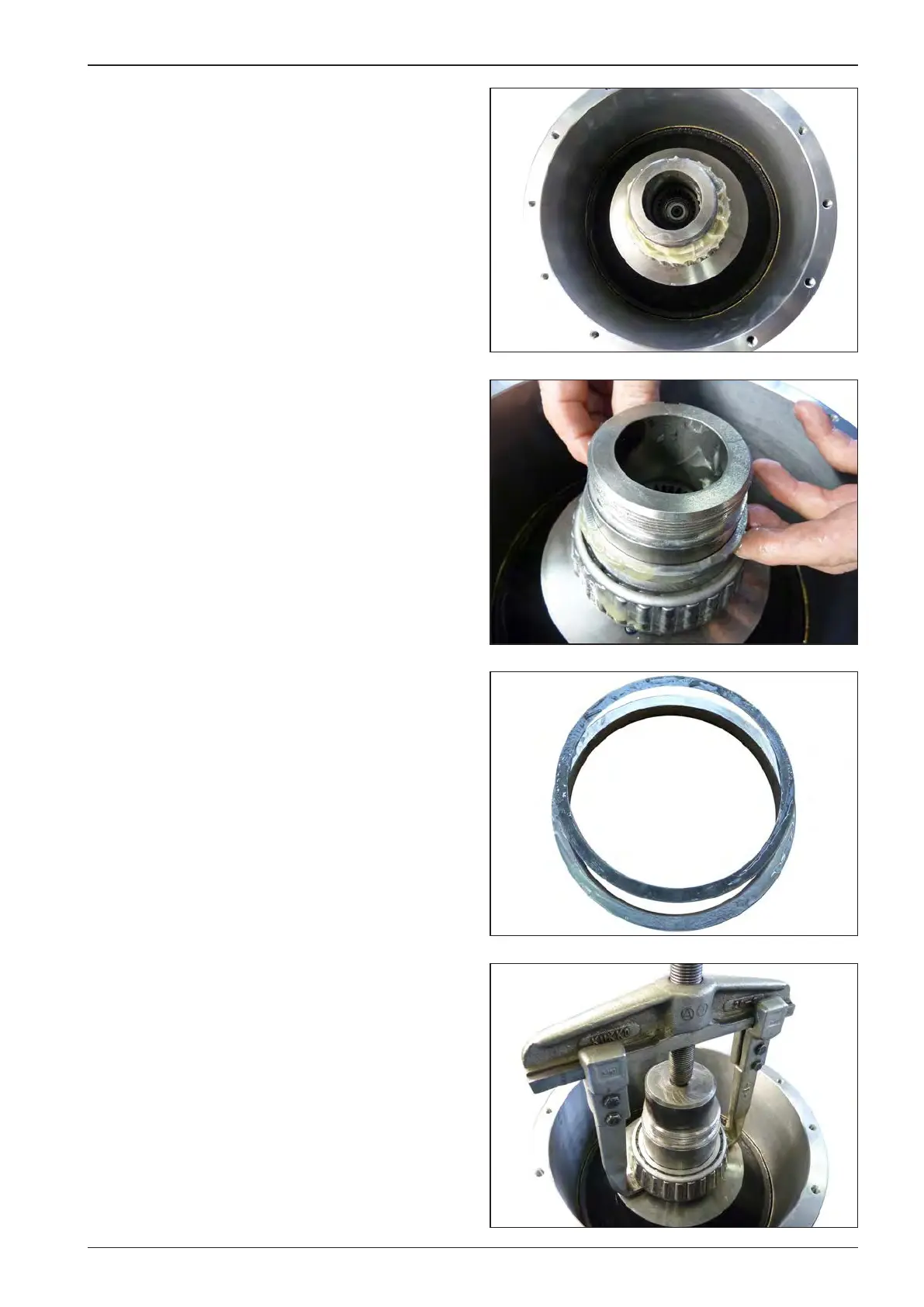

Remove the grease on the hub.

Remove the spacer rings.

Pull the bearings from the hub using the pulling tool.
