151ARR1575

557D303

557D304

557D305

557D306

WORKSHOP MANUAL

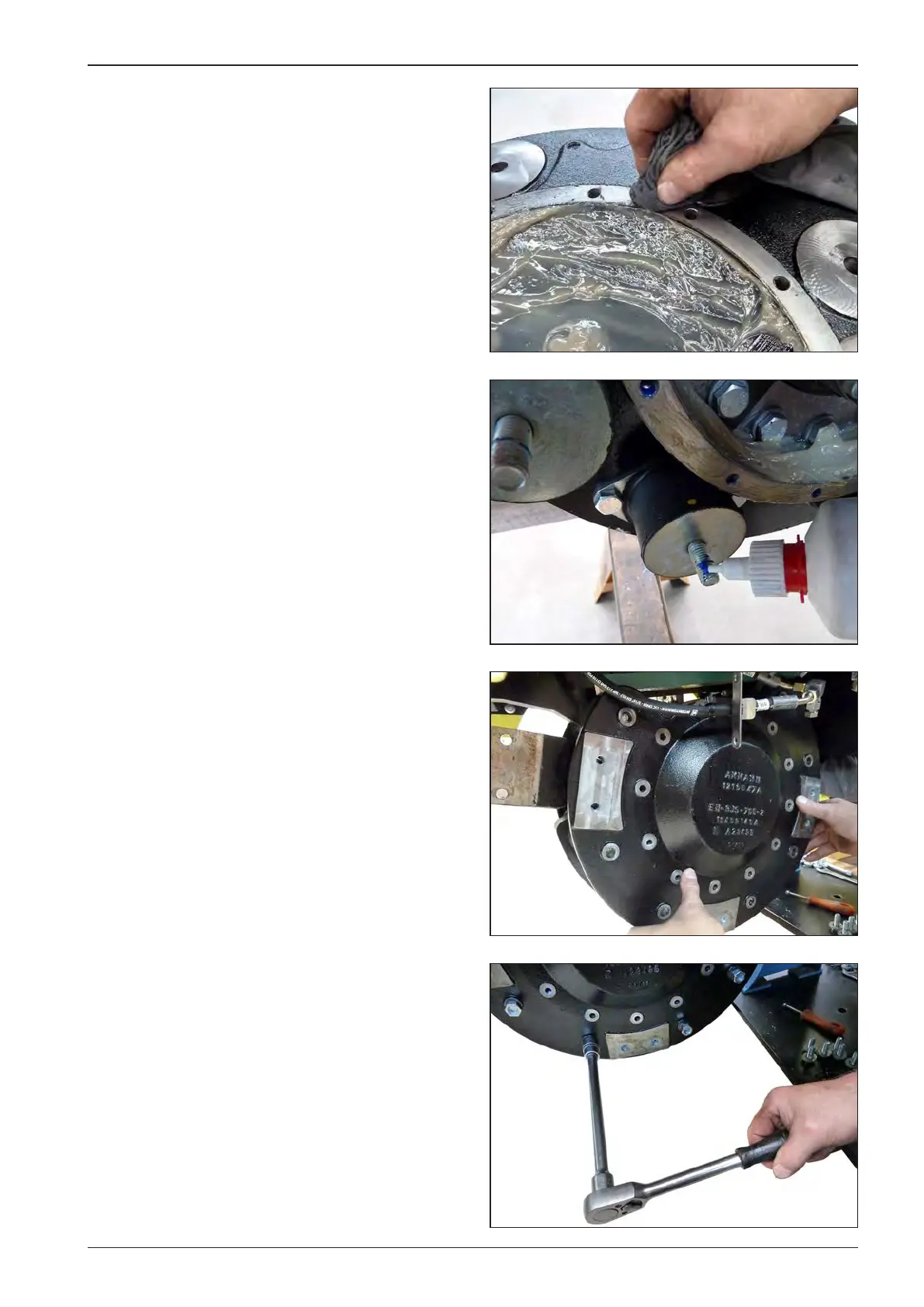

Clean the sealing surface of the gearbox cover.

Apply blue adhesive on the threads of the rubber elements.

Mount the gearbox cover.

Fasten the gearbox cover using the nuts. The tightening torque

is 50 Nm.
