152 ARR1575

557D307

557D308

557D309

557D310

7 Front drum

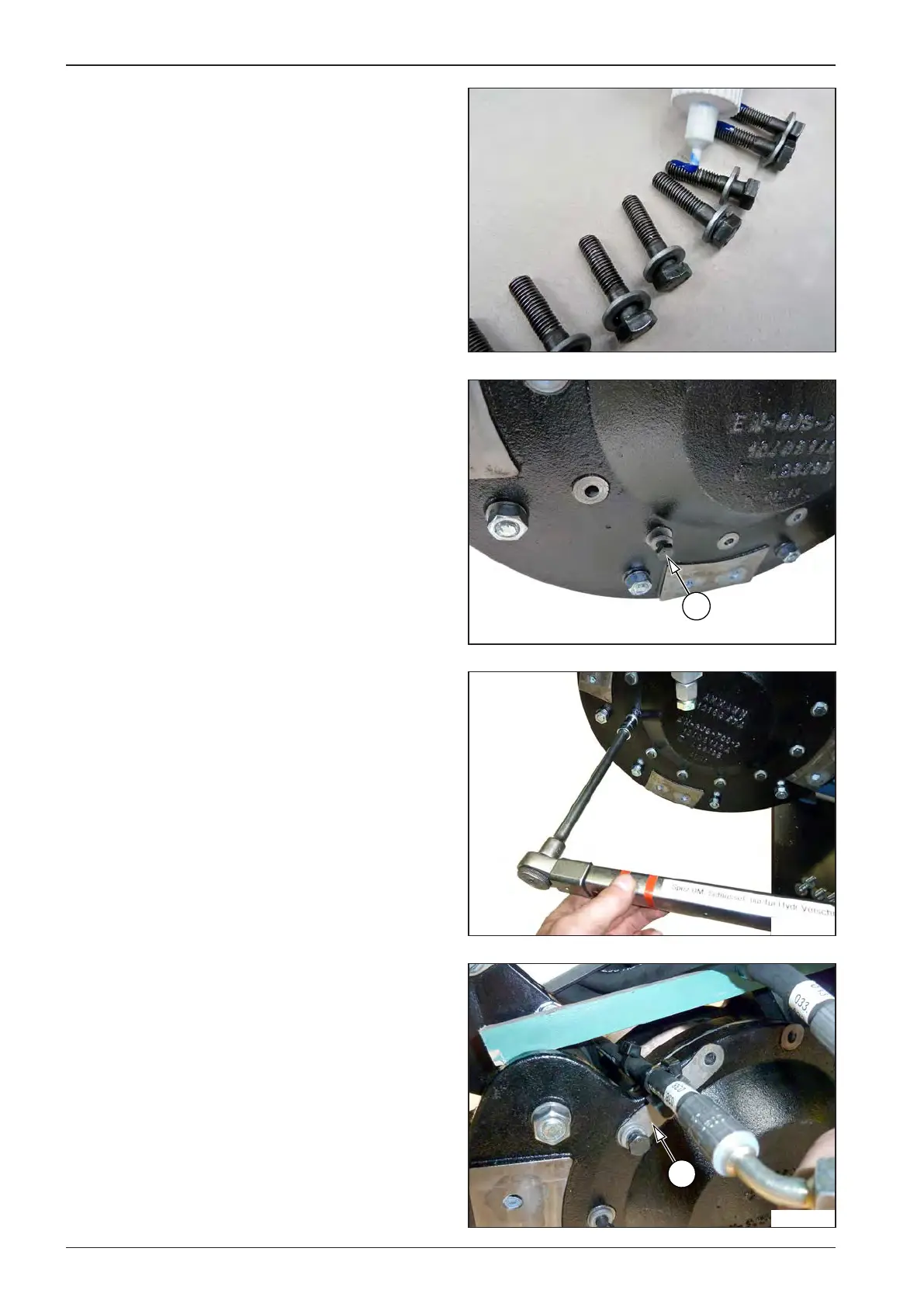

Apply blue adhesive on the screws.

Tighten the screws (1) to atorque of 36Nm.

Install the hose guide holder (1) using the same screws.
