154 ARR1575

557D340

557D341

557D339

7 Front drum

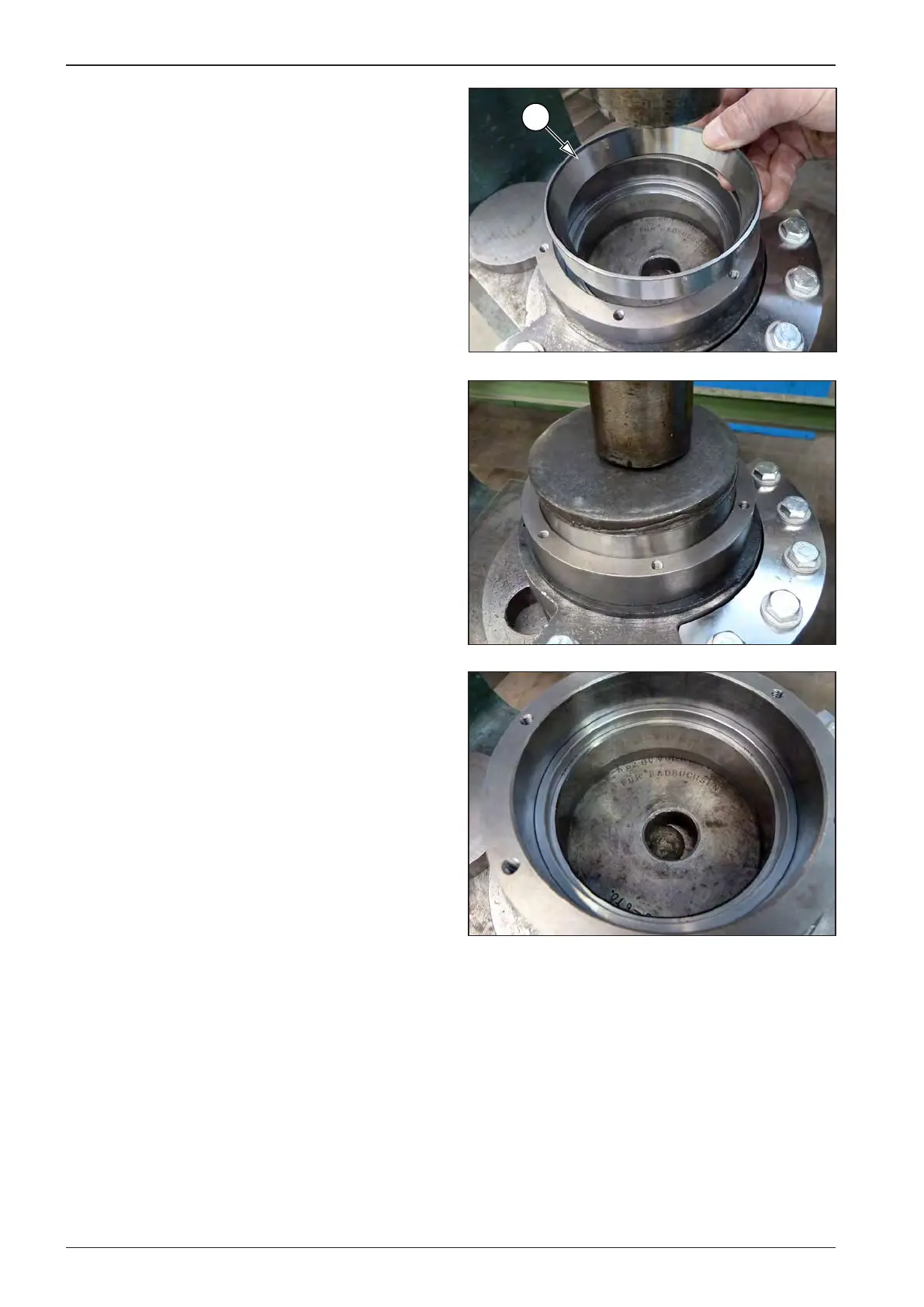

Install anarrow outer bearing ring (1) into the bearing housing.

Observe the installation position.

Push the narrow outer bearing ring into the housing.
