155ARR1575

557D342

557D343

557D344

557D345

WORKSHOP MANUAL

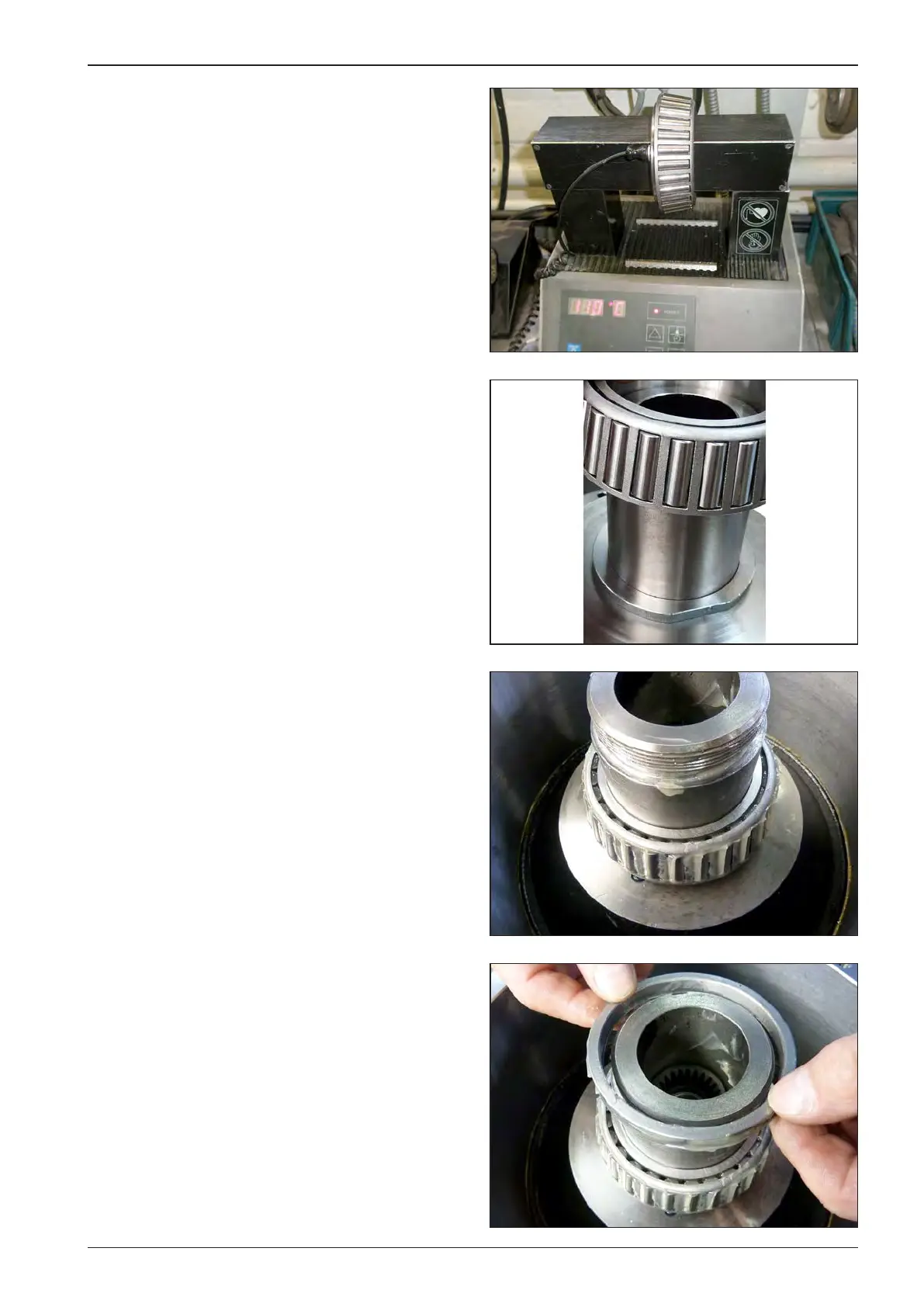

Heat the rear cone bearing to 110 °C.

Slide the rear cone bearing onto the hub.

Apply asmall amount of grease on the bearing.

Mount the spacer rings.
