167ARR1575
WORKSHOP MANUAL

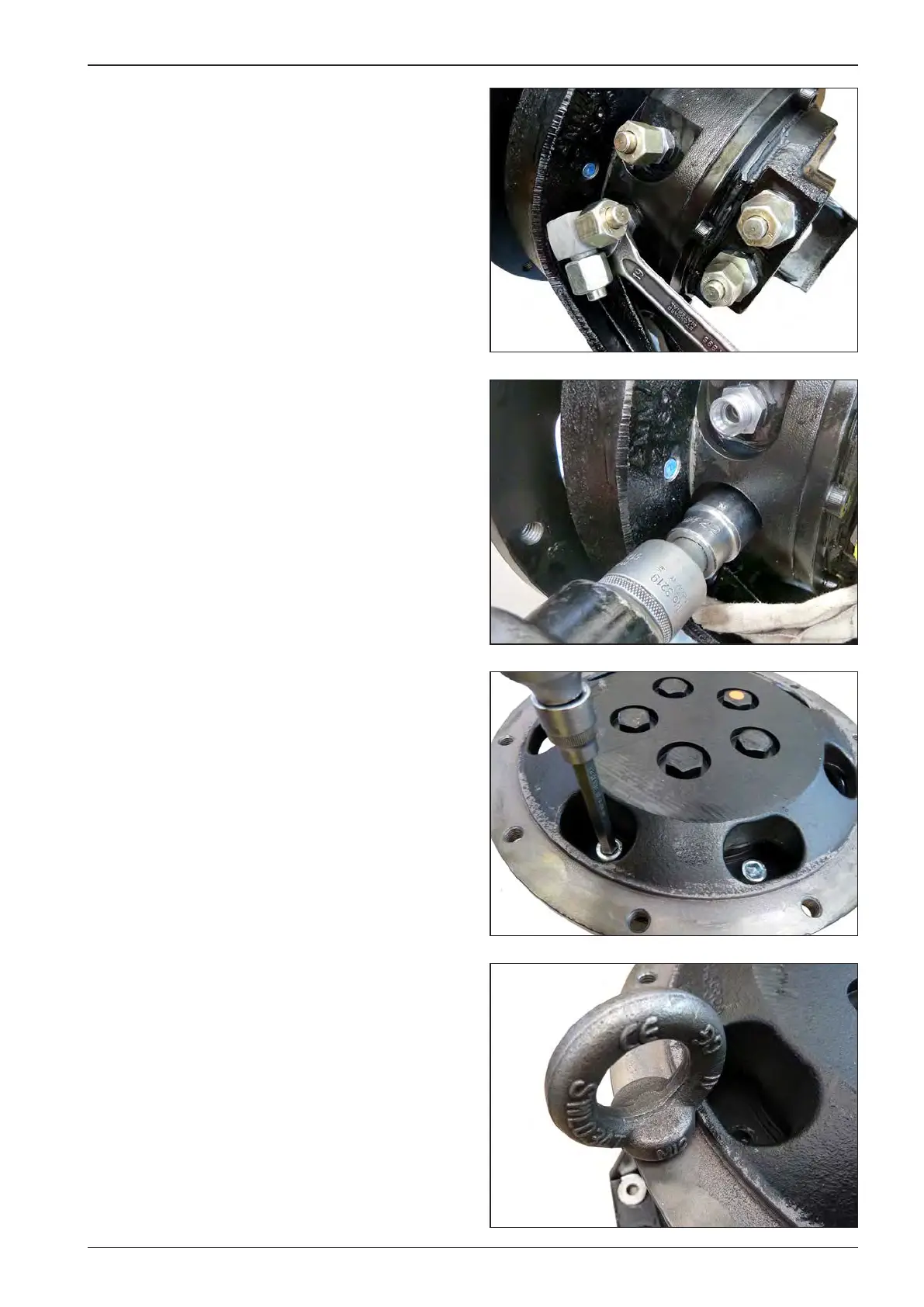

On the removed travel motor, remove all screw unions.
Remove the screws on the travel hydraulic motor ange.
The screws are inaccessible:
In rare cases (7x) where bolts are not accessible, the travel hy-
draulic motor ange must be completely removed. You then
have to remove (5x) hexagon bolts. Lift the ange from the
travel motor.
Screw two eye screws in the travel motor ange.
