168 ARR1575
7 Front drum

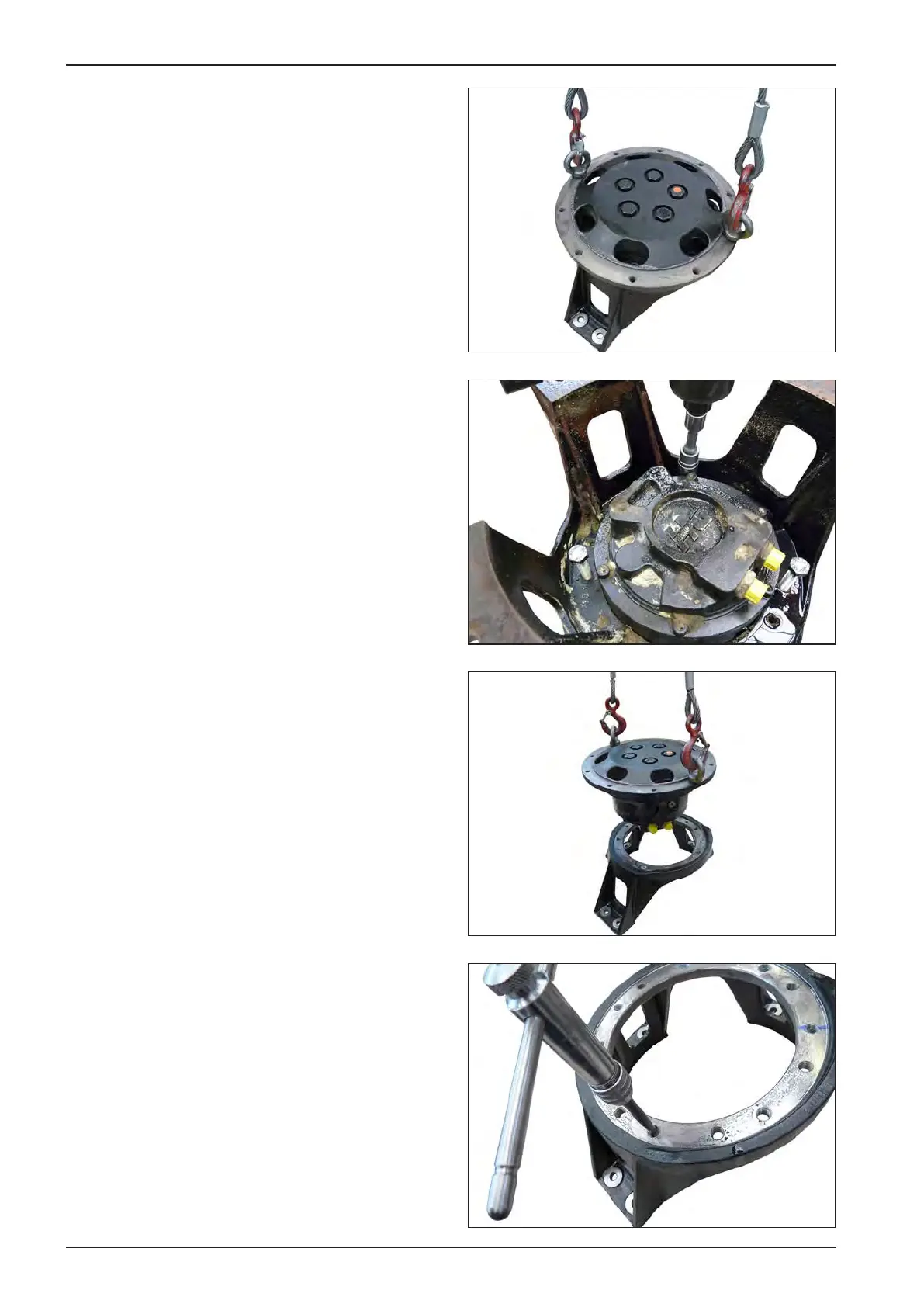

Attach slings to acrane and the eye screws.
Before lifting the travel motor from the motor support, mark the
motor location with apencil.
If the travel motor is stuck in the motor support due to corro-
sion, push the traction motor out of the motor support.
• (3x) Clean the threads.
• (3x) Cut the threads.
• (3x) Mount M12x60 hex screws.
• Push the travel motor out of the motor support.
Lift the travel motor from the motor support.
Clean the seating surface and threads.
