170 ARR1575

557D385

557D386

7 Front drum

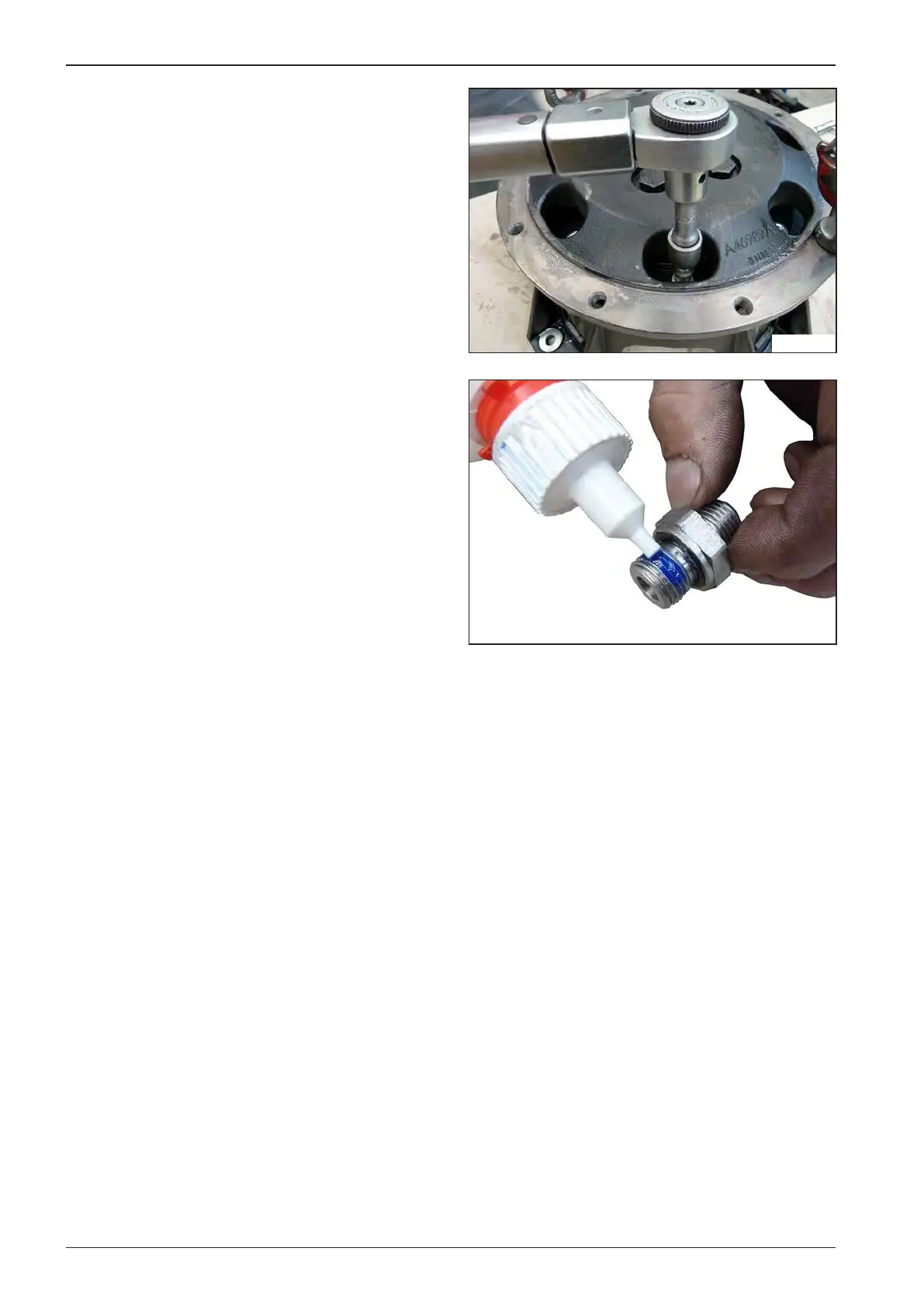

Mount the screws. The tightening torque is 85 Nm.

Apply blue adhesive on the screw unions from the old travel

motor.
