WORKSHOP MANUAL

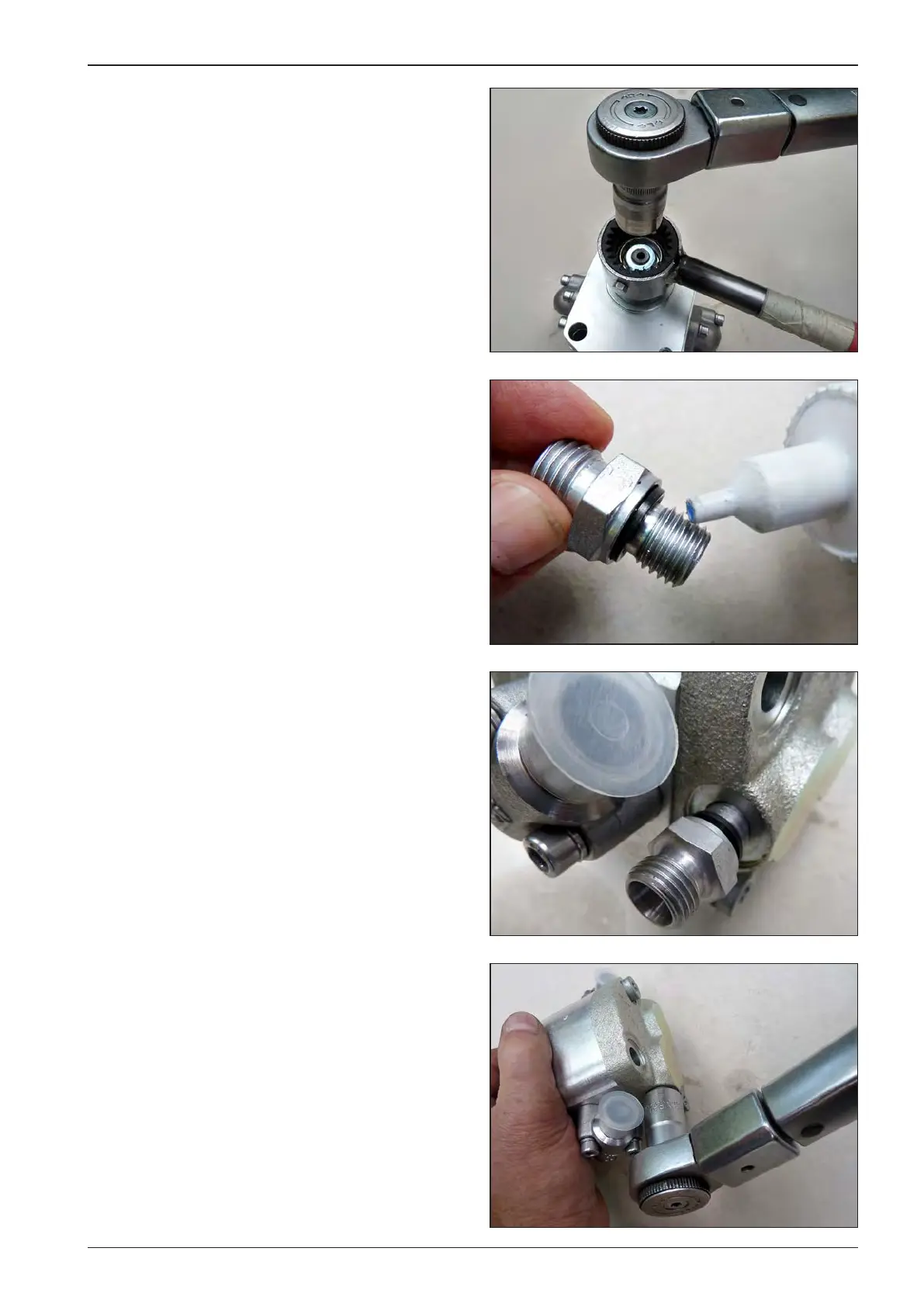

Tighten the pinion nut rmly to atorque of 50 Nm.

Apply blue adhesive on the straight neck.

Mount the straight neck and tighten rmly to torque of 40 Nm.
