Ammann ARR 1575 - Page 212

To Next Page

To Previous Page

210 ARR1575

557D457

557D458

557D459

557D460

11 Travel

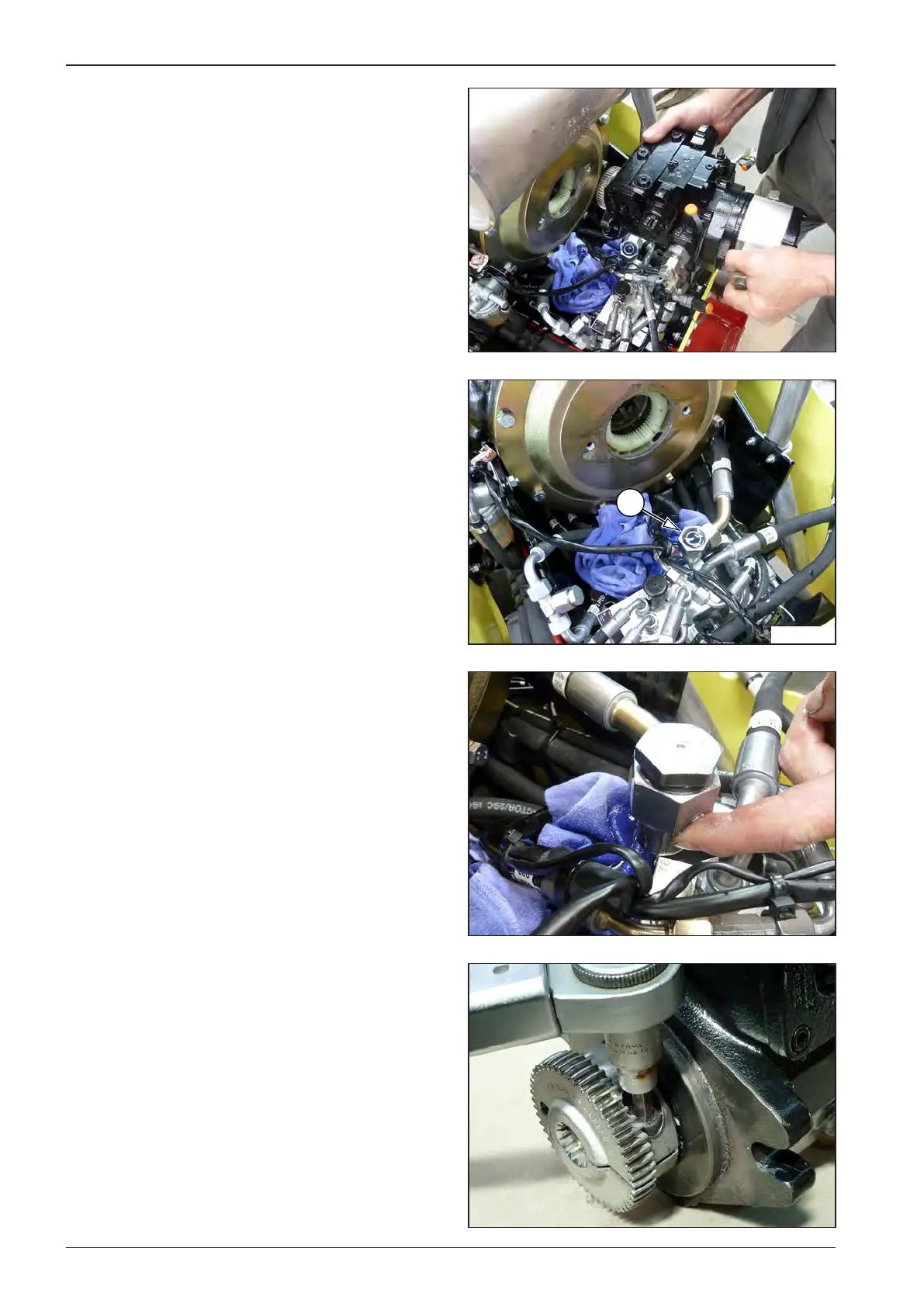

Lift the travel pump from the motor.

Now close the loose angled screw union of the suction line (1).

Pull the pinion o the shaft.
