WORKSHOP MANUAL

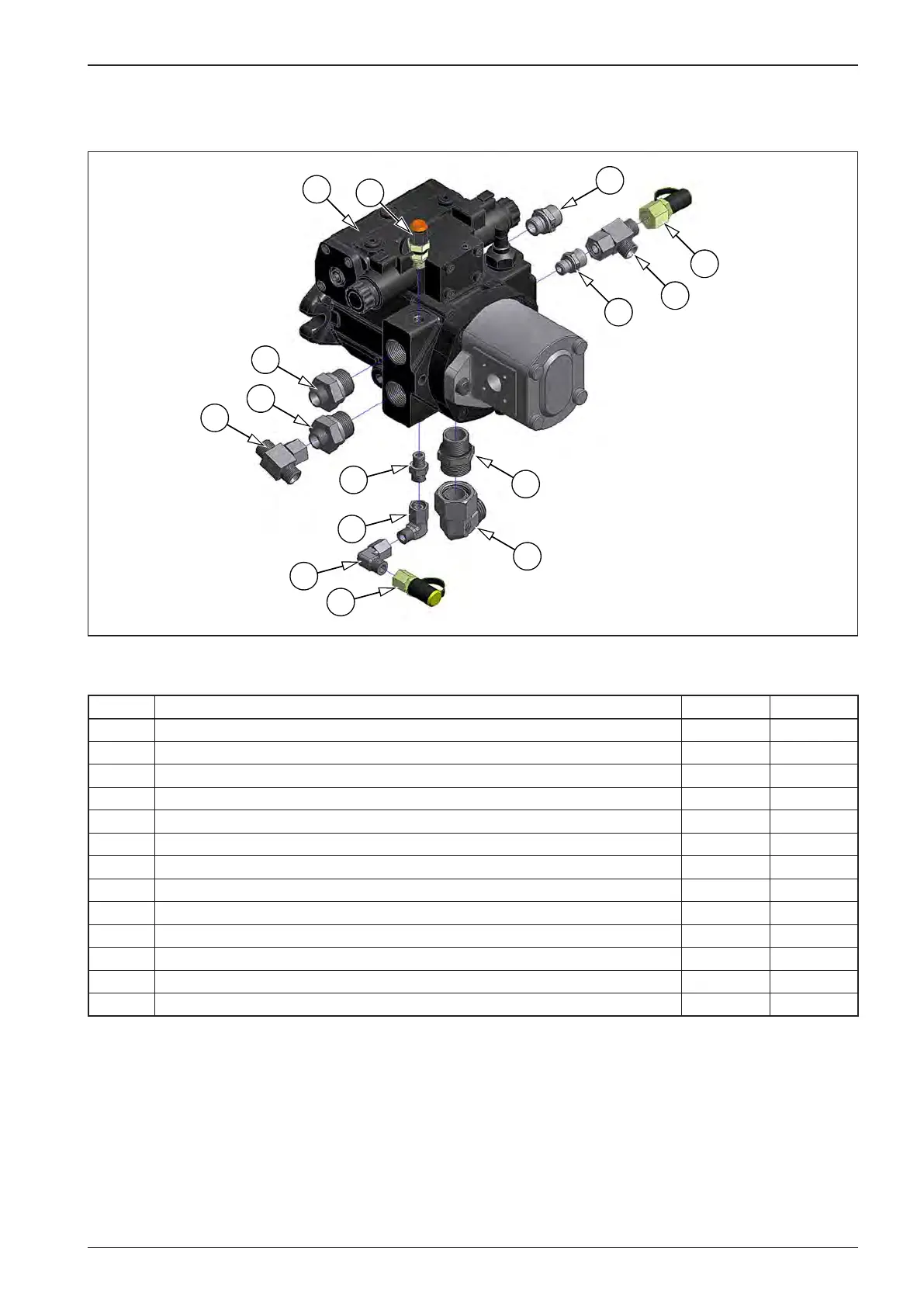

Preparation of anew vibration travel pump
If the old screw unions are undamaged, you can reuse them. Otherwise, use new screw unions.
Travel pump screw unions
SW Nm
1 Hydraulic pump
2* Straight neck with thread GES12L/M27x2-WD 32 180
3* Straight neck with screw union GES 8LM-WD 17 25
4* Straight neck with screw union 12L/M 14x1.5-WD 19 45
5* Straight neck with screw union GES15LM-WD 27 70
6* Straight neck with screw union GES22LM-WD 32 125
7 Screwed connection MINIMESS-1620 DKO 8L 17
8* Screwed connection MINIMESS-1620 M12x1.5 17
9 Screwed connection MINIMESS-1620 DKOL 12L 22
10 Adjustable angled neck EWSD 8L 17
11 Adjustable angled neck EWSD 22L 36
12 Adjustable T-neck ETSD12L 22
13 Adjustable L-neck ELSD12L 22
* Apply blue adhesive on all straight threaded necks and Minimess M12x1.5.
