214 ARR1575

557D467

557D468

557D469

557D470

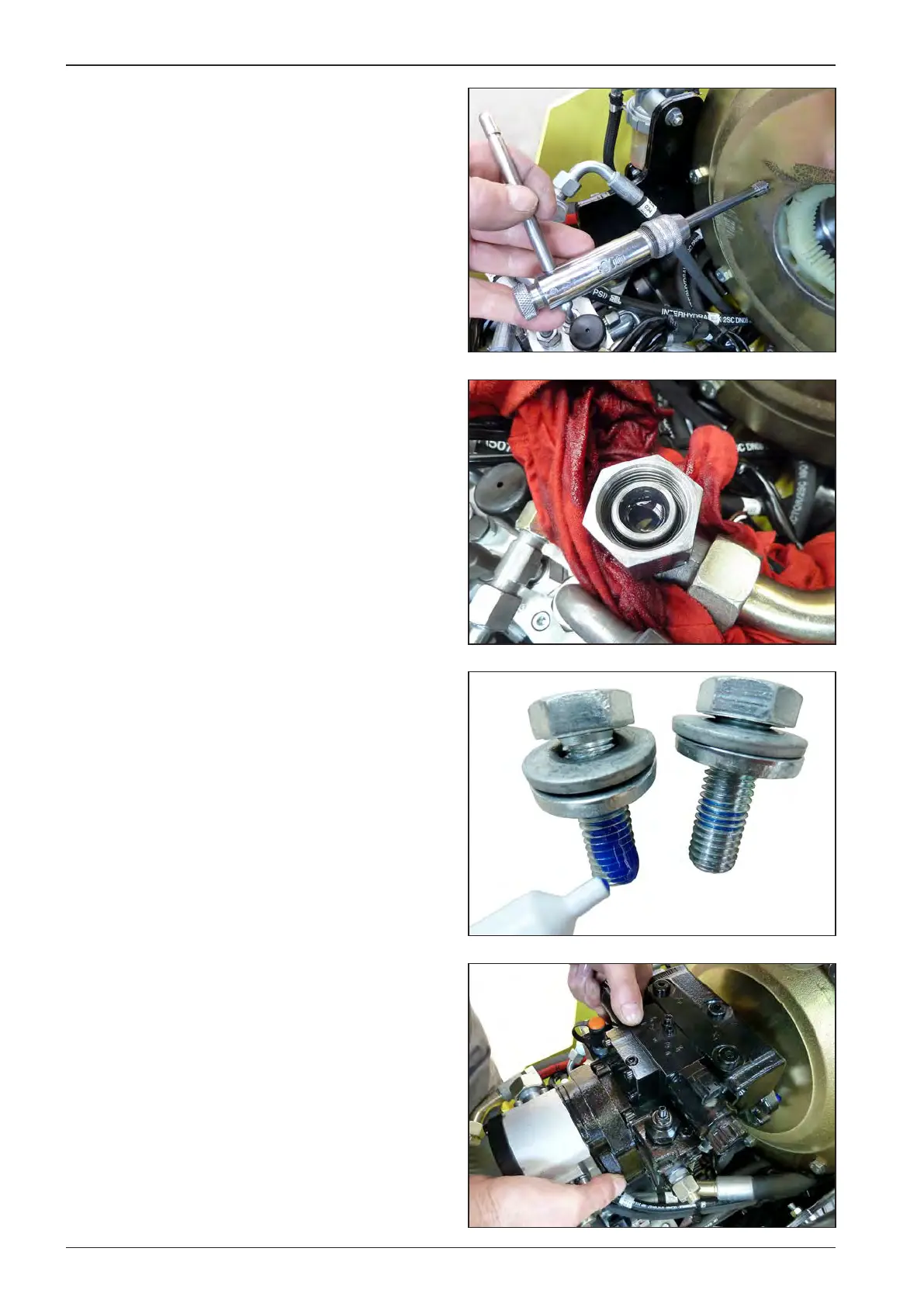

11 Travel

Installation

Clean the M12 thread on the pump ange.

Remove the suction hose stopper cap.

Apply blue adhesive on the screws.

Move the travel pump on the pump ange.
