215ARR1575

557D471

557D472

557D473

557D474

WORKSHOP MANUAL

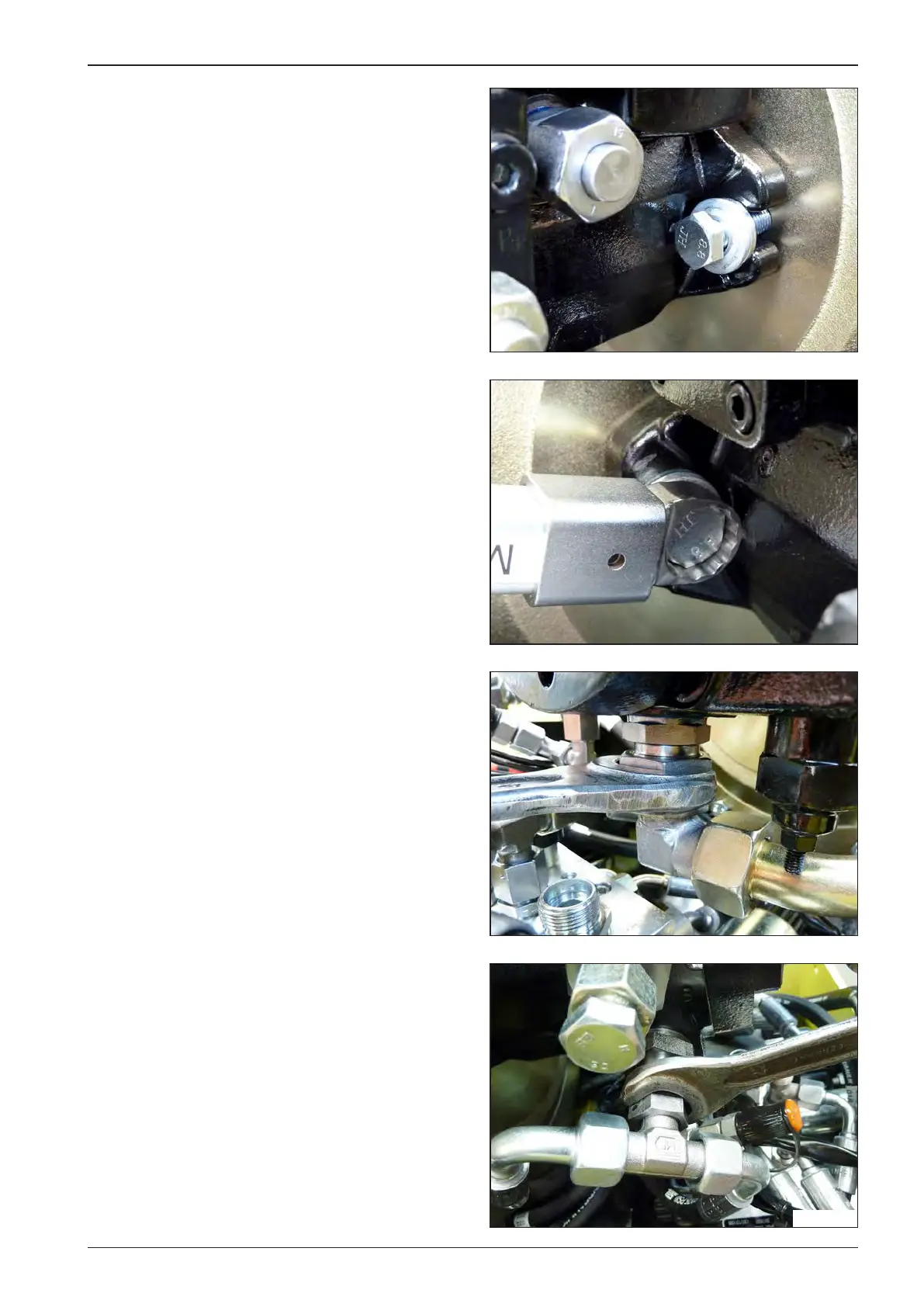

Tighten the screws to atorque of 85 Nm.

Mount the suction line screw union.

Mount the T screw union of the reverse travel (A), travel pump

circuit.
