WORKSHOP MANUAL

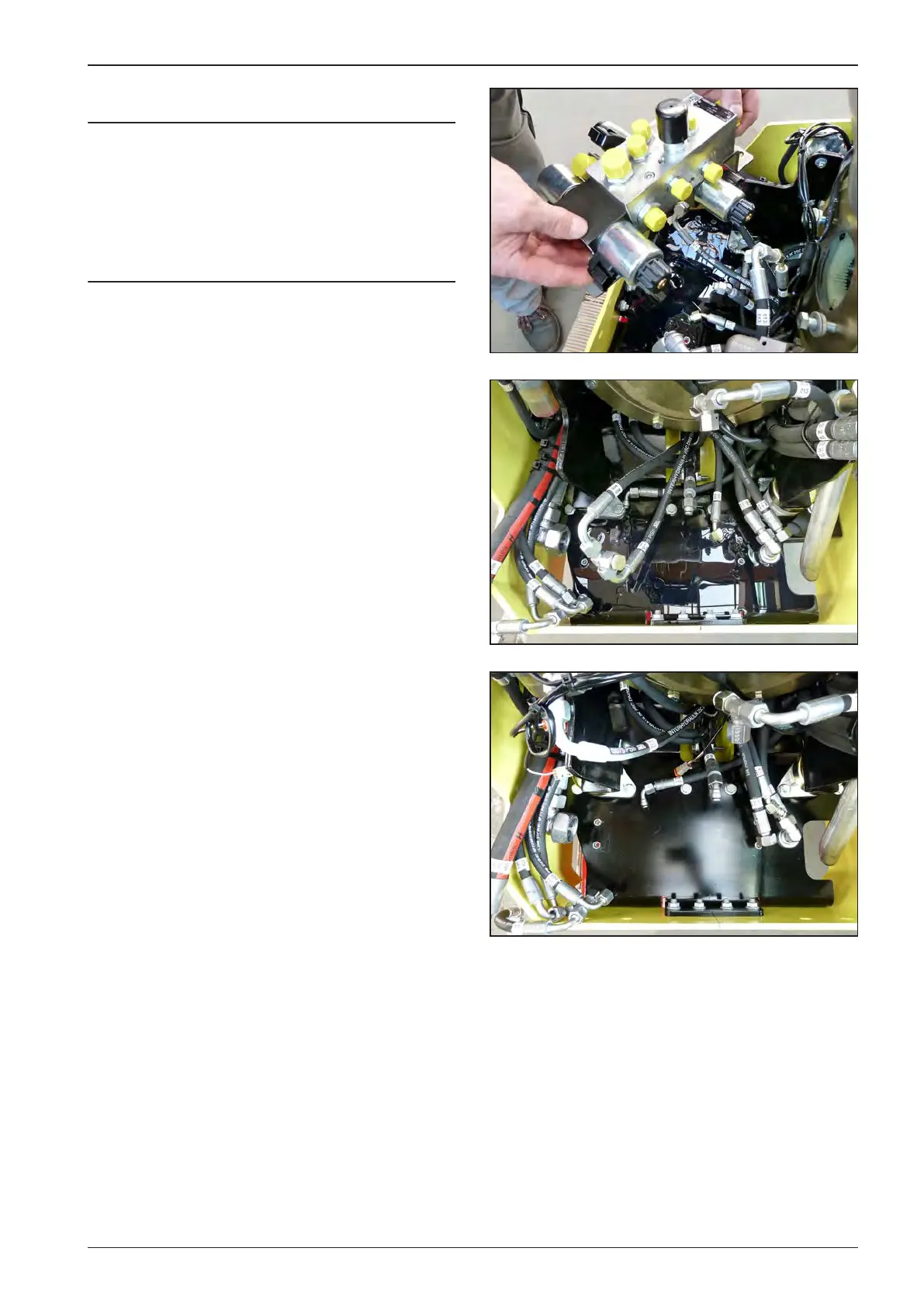

Lift the valve block from the chassis.
CAUTION:
In this example, the travel pump has already been re-
moved. It is not necessary to remove the travel pump to
remove the valve block.
You can remove the side plates on the right and left on
the chassis.
View of the motor compartment, removed valve block.
Before installing anew or tested valve block, clean the bottom
plate of hydraulic oil and dirt.
