224 ARR1575

557D502

557D503

557D504

557D505

11 Travel

Check

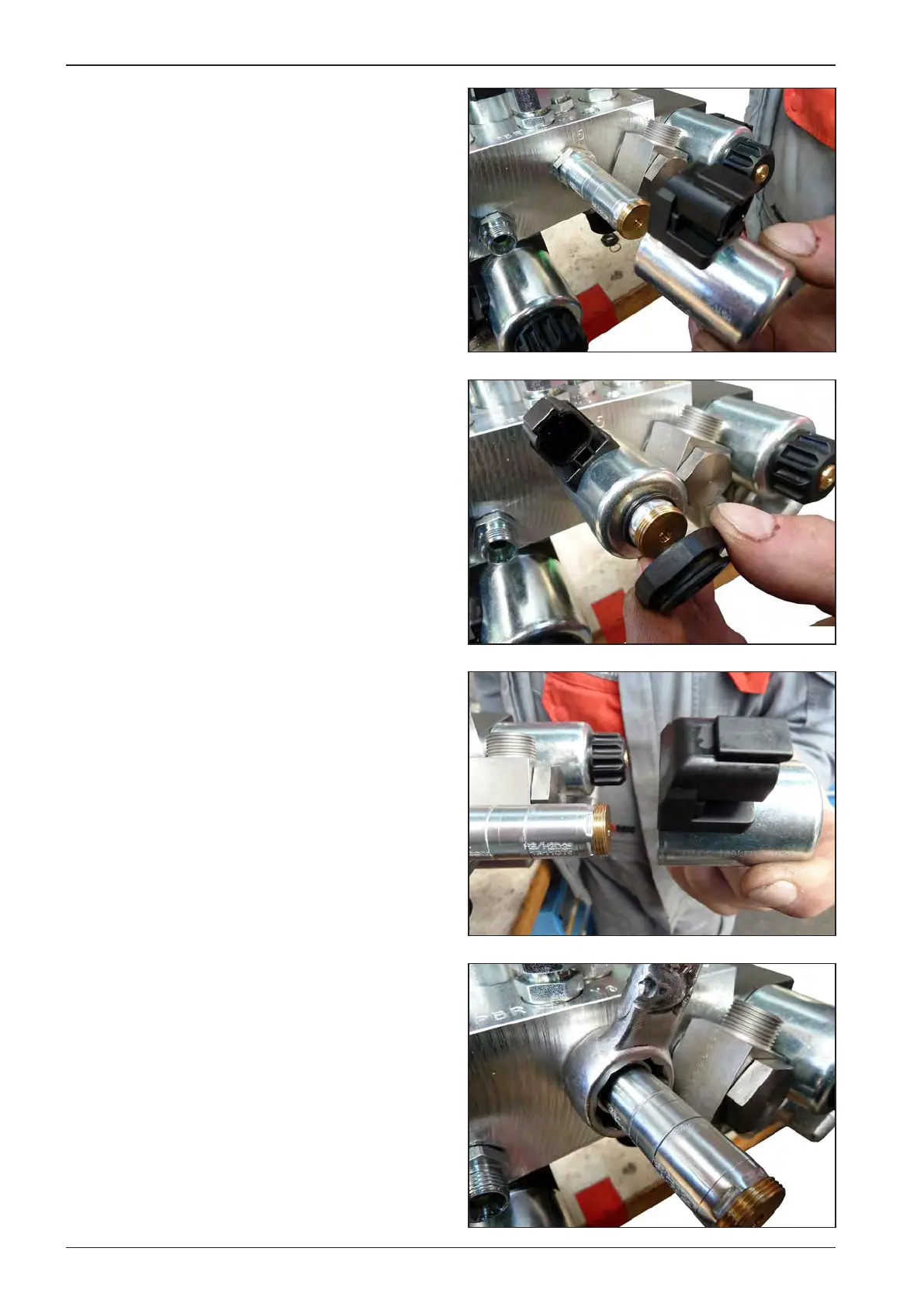

Magnetic valve – brake

We recommend checking all magnetic coils and valves on the

removed valve block.

Remove the nut on the magnetic valve.

Remove the magnetic coil.

Remove the valve.
