11 Travel

Installation

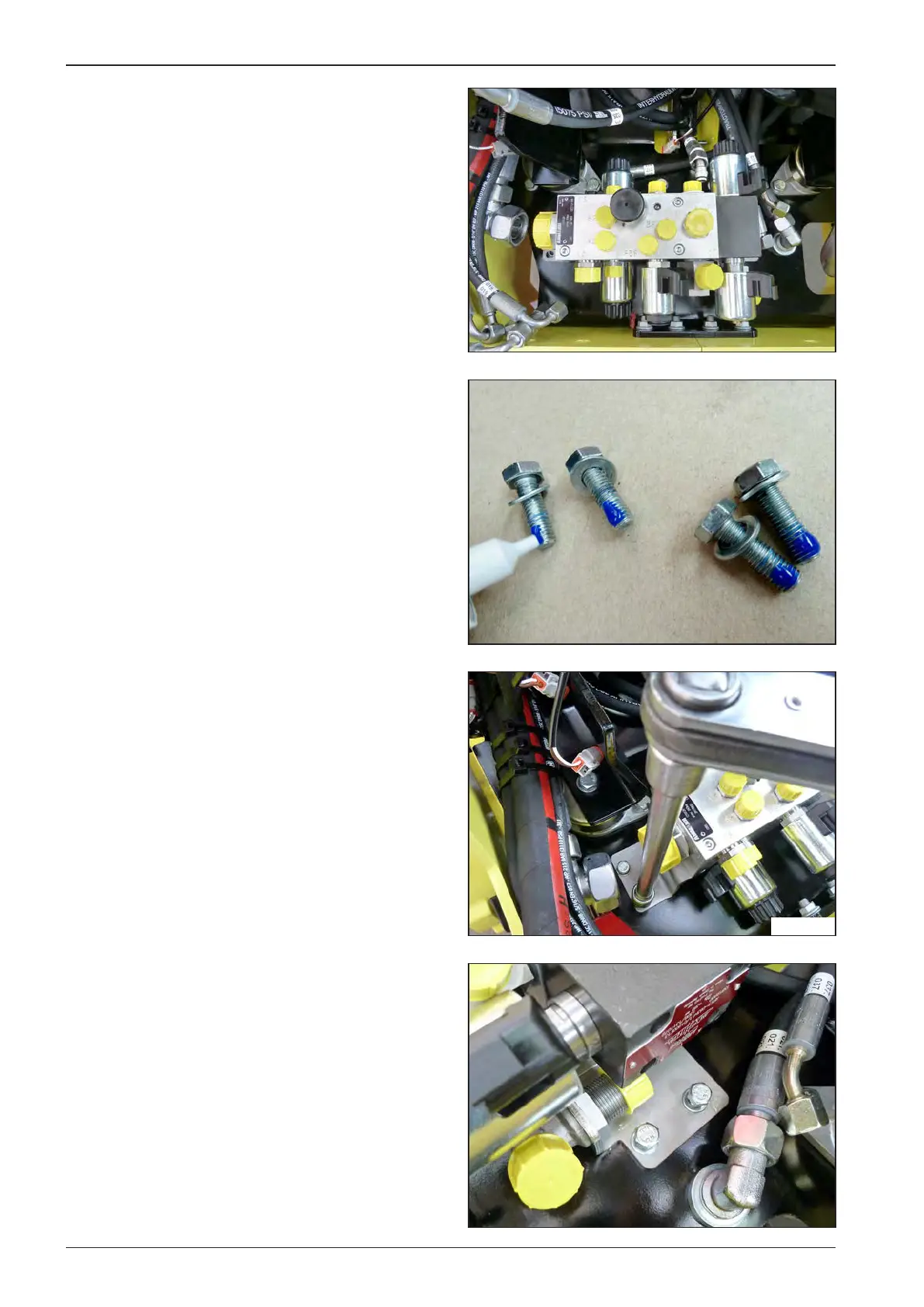

Place anew or checked valve block on the bottom plate.

Apply blue adhesive on the screws.

Tighten the valve block screws (25 Nm).
