WORKSHOP MANUAL

Installation

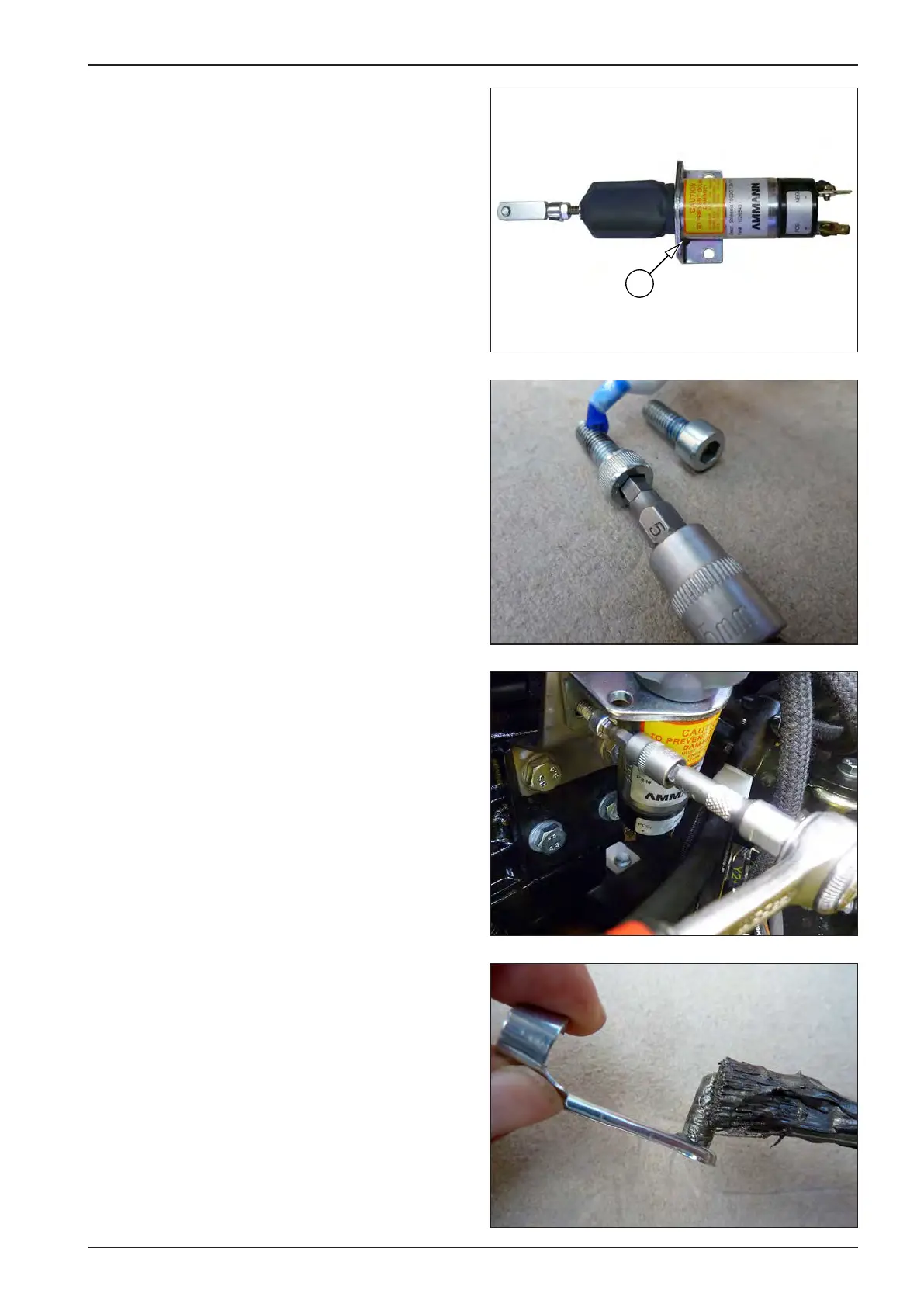

Preassembled speed magnet (1).

Apply blue adhesive on the screws.

Place and rmly fasten the speed magnet.

Lubricate the safety pin of the plug head.
