Ammann ARR 1575 - Sensor Replacement and Adjustment

272 ARR1575
557D638
557D639
557D640
557D641
16 Optional equipment

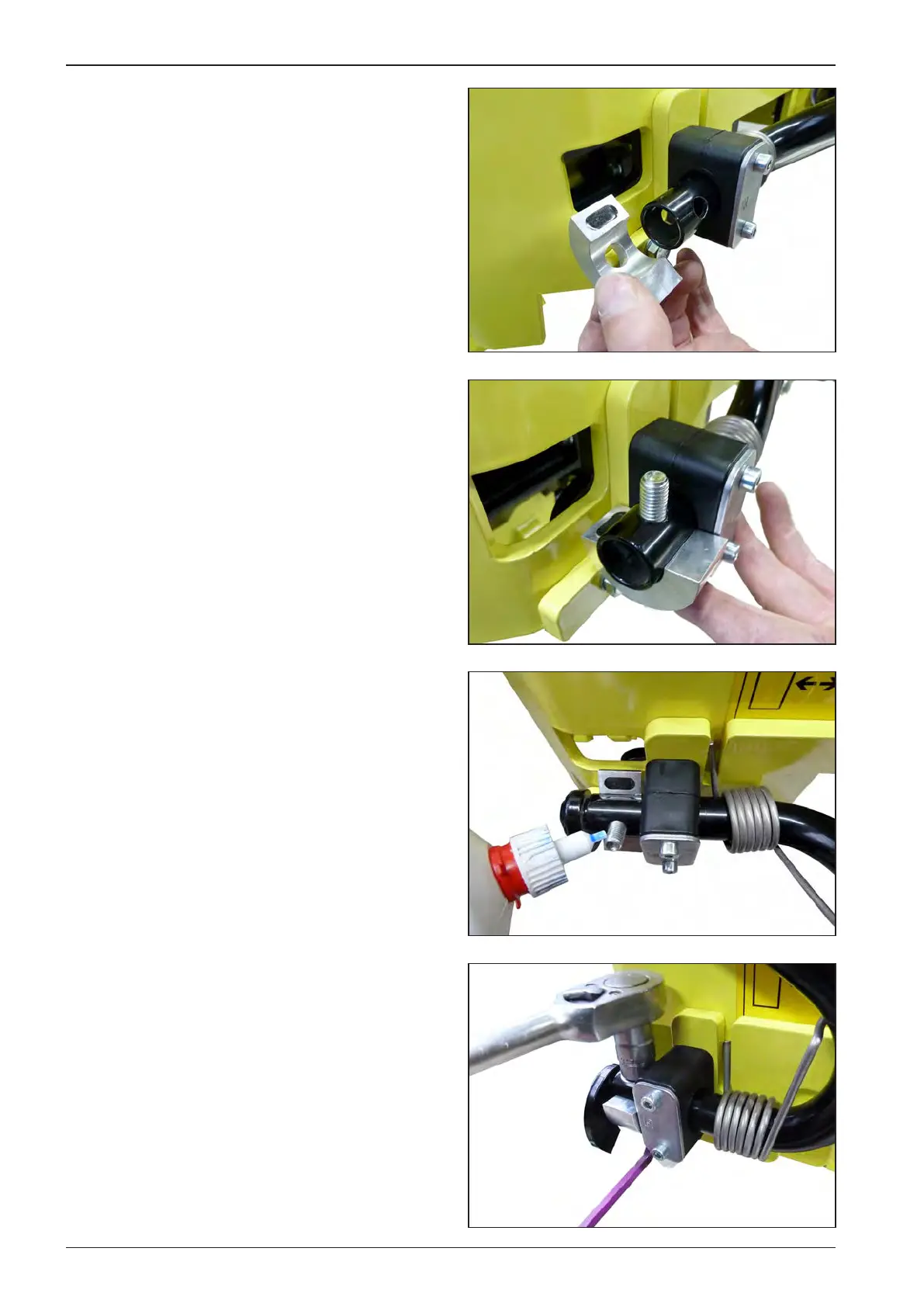

Mount the magnet on the left on the tube.
Observe the installation position (see the gure).
Insert the screw from below.
Apply blue adhesive on the screw.
Tighten the screw rmly.
Tighten the screw rmly until the stop (1) lies in the tube with-
out agap.
