5. Under Flip, check the Horizontal and/or Vertical check-boxes to flip the view horizontally and/or
vertically.
To mask a portion of the view:
Front Panel
1. Enter the INPUTS menu on the Front Panel interface.
2. Scroll down and select an input to access the selected input setup menu.
TIP: Double-click on an INPUT SELECTION button to shortcut to the input setup menu directly.
3. Select "View" Settings to access the input's view settings menu.
4. Select Units to choose the units used to mask the view:
• Select PERCENT to set up the view using relative (percent) units.
• Select PIXELS to set up the view using absolute (pixel) units.
NOTE: These units will also be used to mask the view.
5. Scroll down and edit the following parameters:
• Mask Left: Mask area on the left of the input content.
• Mask Right: Mask area on the right of the input content.
• Mask Top: Mask area at the top of the input content.
• Mask Bottom: Mask area at the bottom of the input content.

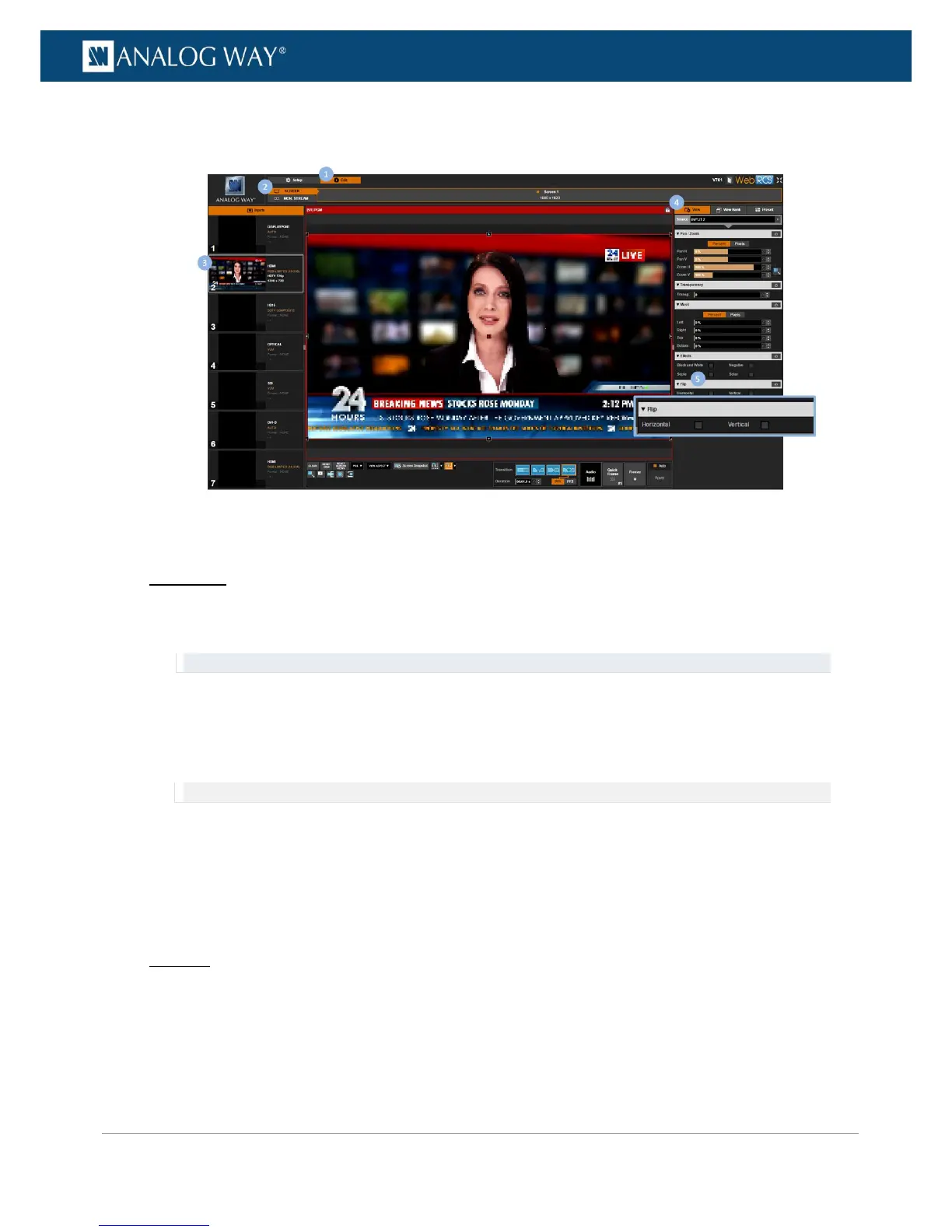

Web RCS
1. Go to the Edit menu on the Web RCS interface.
2. Select the SCREEN tab to access the screen edit page.
3. In the left side toolbar, select an INPUT to load the input view settings.
4. In the right side toolbar, select the View tab to access the input's view settings.
