OAM ProtocolOAM Protocol
This screen allows you to configure the OAM application (i.e. the OAM
functions). It can also be used to inspect the current status of the selected port.
ProtocolProtocol
Touch the button in the top left-hand part of the screen to select the protocol.
The setup parameters are grouped according to protocol.
802.3ah protocol - Applies to the connectivity of point-to-point connections
across one hop.
802.1ag protocol - Applies to the connectivity of bridges and paths that pass
through bridges. Handles both multipoint connections and point-to-point
connections.
Y.1731 protocol - An extension to the 802.1ag standard and relies upon the
802.1ag protocol for transport. Applies to both multipoint and point-to-point
connections.
In addition, the 802.1ag and Y.1731 protocol screens contain a special
Discovery setup.
To change to a different protocol, the state of the current protocol will be set to 'Off'.
The configuration options available in the setup area of the screen are
described below. The status information is described in a separate section.

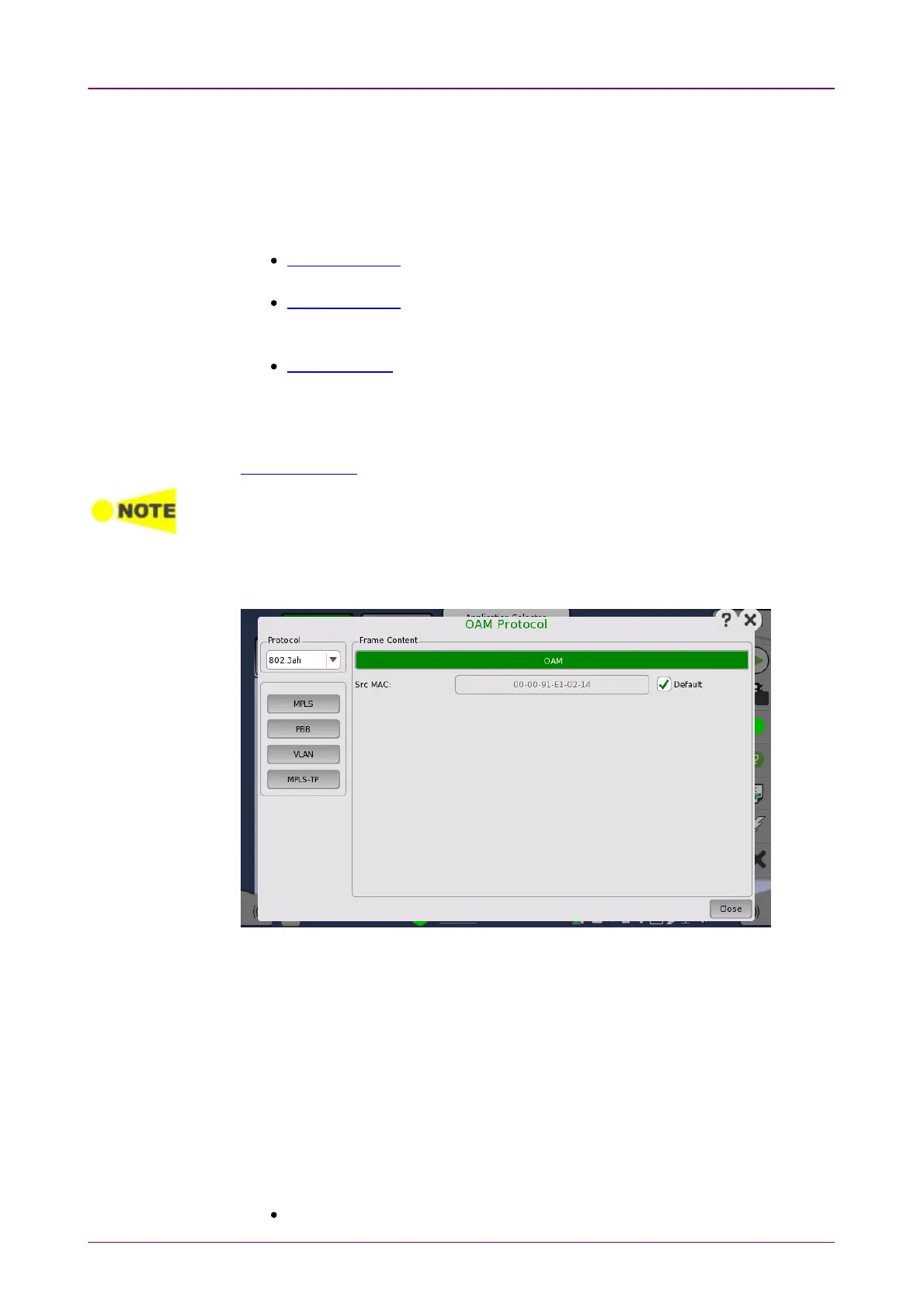

In the OAM ProtocolOAM Protocol dialog box the buttons on the left-hand side allow you to
select the relevant layers. The current selection is shown at the top of the
Frame ContentFrame Content area. Touching one of the layer buttons in the Frame ContentFrame Content
area will display the setup parameters for that layer.
The following layers and parameters are available:
OAM layerOAM layer
Src MACSrc MAC: The MAC address of the source that sends the OAM Protocol Data
Units, which is a unicast address. When selecting the DefaultDefault check box, the
MAC address which is set to the port is used.
PBB layerPBB layer
B-TagB-Tag: Allows you to set a VLAN Identifier (VIDVID), a Drop Eligible Indicator
