Chapter 3 Panel Layout and Connectors
3-14.

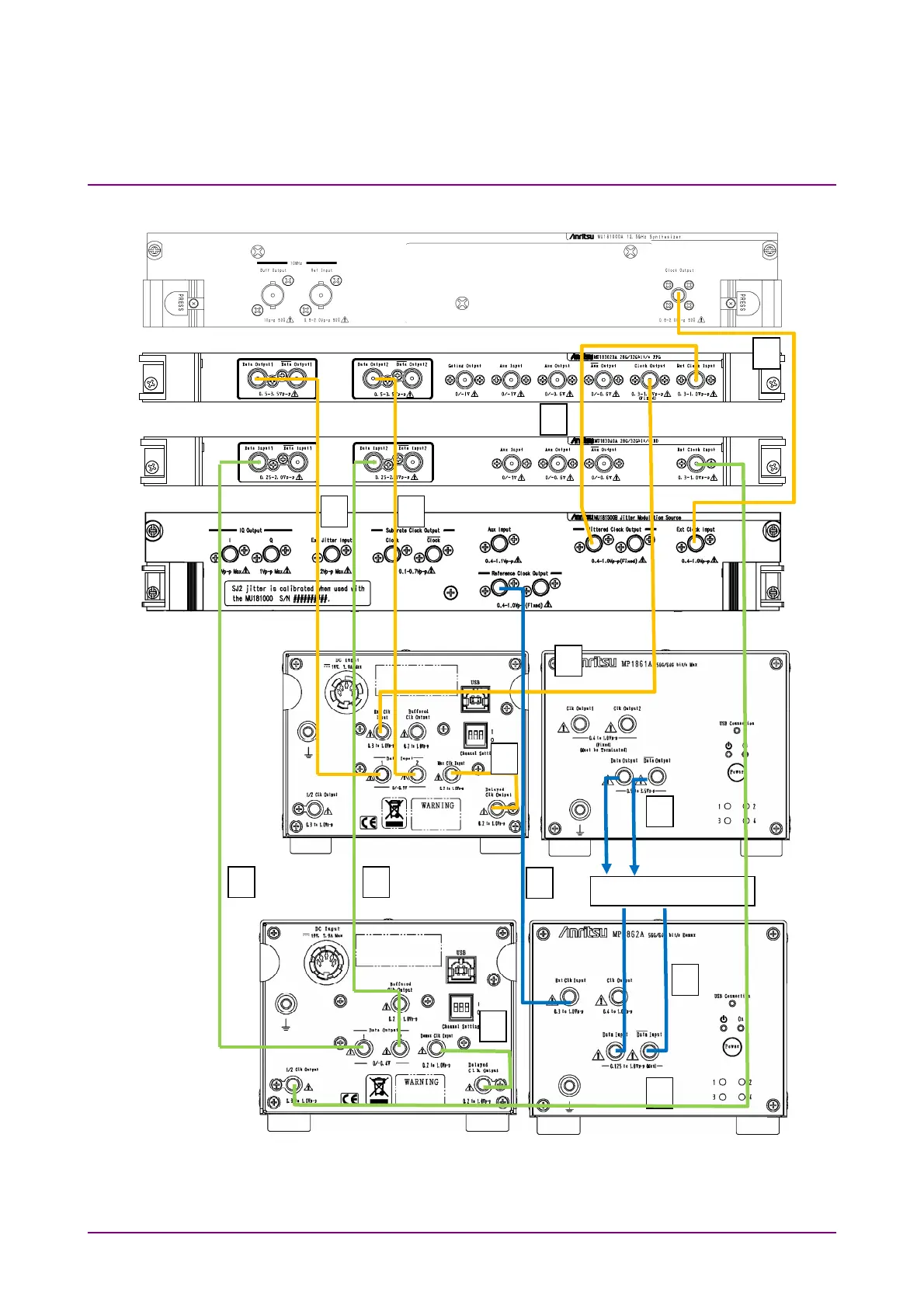

Figure 3.2.3-1 1ch TRx Connection Example (For Bathtub Jitter Measurement)
4
5
DUT
11
7
8
9
10
6
33
9
1
2
MU181500B
MU183040B
MU183020A
MU181000
A
