[1] Set the data input conditions.

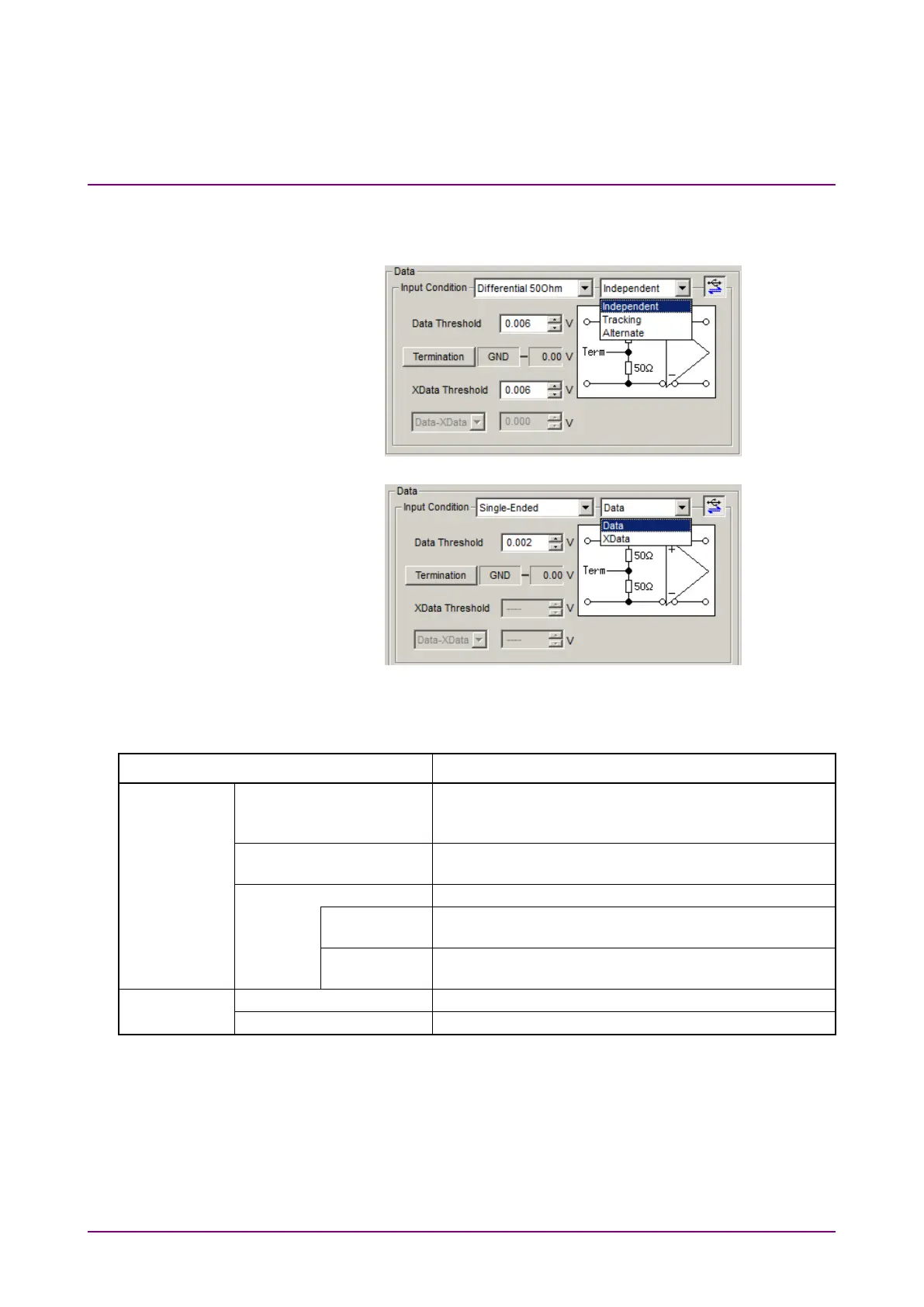

Figure 4.4.1-2 Setting Data input conditions
Table 4.4.1-1 Data input condition setting items (Input Condition)
Data input condition setting items Description
Differential
50 Ohm,
Differential
100 Ohm
Independent
Uses Data and XData as the differential input.
Thresholds for Data and XData can be changed
independently.
Tracking
Uses Data and XData as the differential input.
The threshold for XData tracks the setting for Data.
Alternate
Uses Data and XData as the differential input.
Data-XData
Sets the threshold for the difference between Data
and XData, using Data as a reference.
XData-Data
Sets the threshold for the difference between XData
and Data, using XData as a reference.
Single-Ended
Data
Uses the Data side as single-ended input.
XData
Uses the XData side as single-ended input.
•
When the Input Condition is Differential 50Ohm
•
When the Input Condition is Single-Ended
