General Information 1-7 Identifying the Connections
MS20xxB UG PN: 10580-00301 Rev. D 1-3
1-7 Identifying the Connections
The MS2024B and MS2025B have the connectors shown in Figure 1-1. For details, refer to
Figure 2-8.
The MS2034B and MS2035B have the connectors shown in Figure 1-2. For details, refer to
Figure 2-9.
Model physical characteristics are in the Technical Data Sheet (refer to Table A-2,
“VNA Master Related Documents” on page A-1).

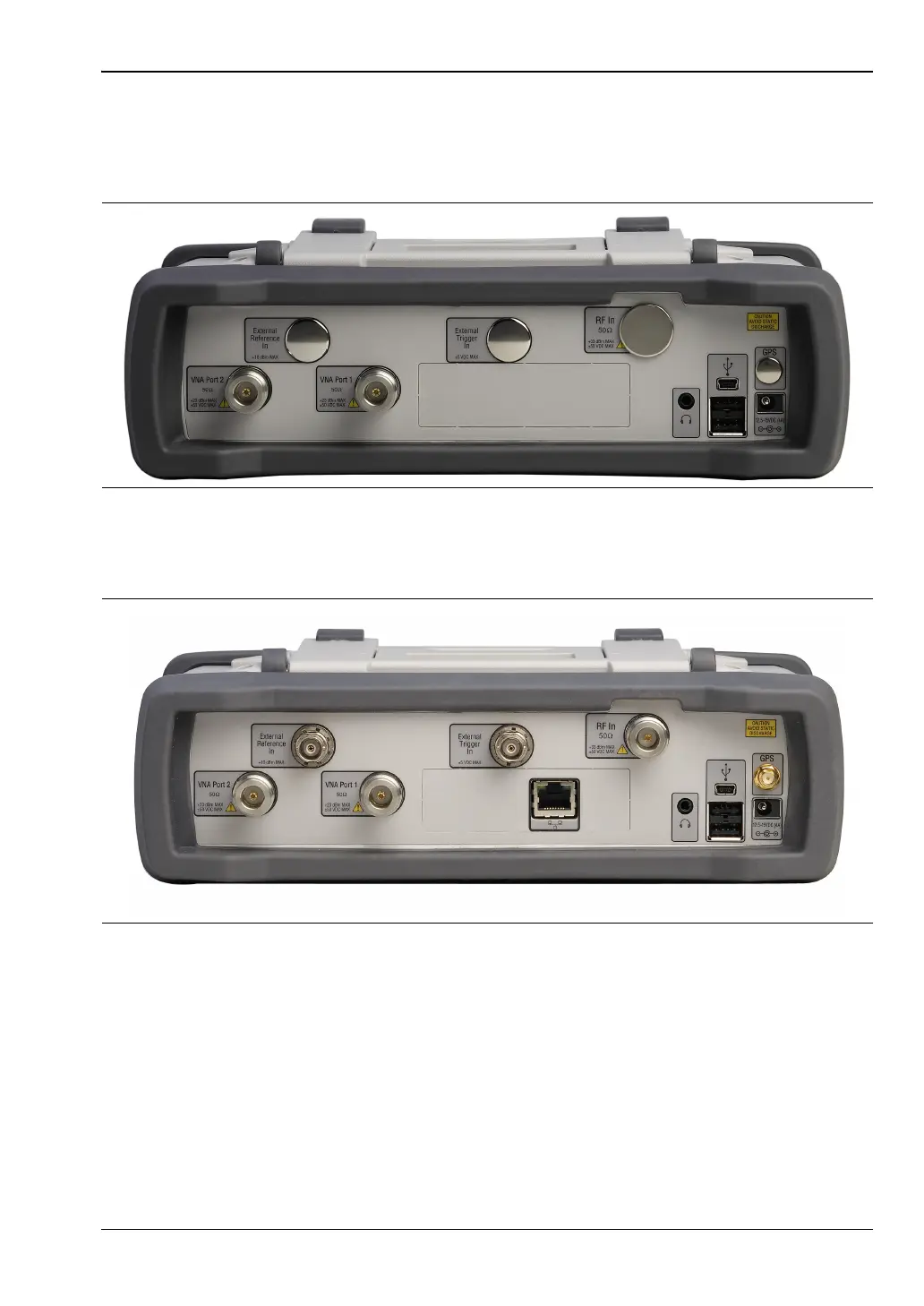

Figure 1-1. MS2024B and MS2025B Connectors
Figure 1-2. MS2034B and MS2035B Connectors
