File Management 4-3 Managing Files
MS20xxB UG PN: 10580-00301 Rev. D 4-5
Copy Files
The steps below describe copying a file from internal memory to an external flash drive.
Select the files to copy in the top window and the location for the files (to be copied) in the
bottom window (Figure 4-3). Refer to the “Copy Menu” on page 4-13 for additional
information.
1. Insert a USB drive into either USB Type A port of the VNA Master.
2. From the File main menu, press the Copy soft key. The Copy menu and Copy dialog box
are displayed.
3. Select the files that are to be copied. To select multiple files, highlight the first file, then
press the Select or De-Select key to keep the file selected. The selected file is outlined in
blue. Repeat with all the files that are to be copied. To display files in a folder, select the
folder and press the Enter key.
4. Press the Scroll key and highlight the USB drive in the lower window using the
touch screen or the Up/Down arrow keys. The Scroll soft key toggles between source
and destination, Src (top window) and Dst (bottom window).
5. Press the Copy key to copy the files to the flash drive.

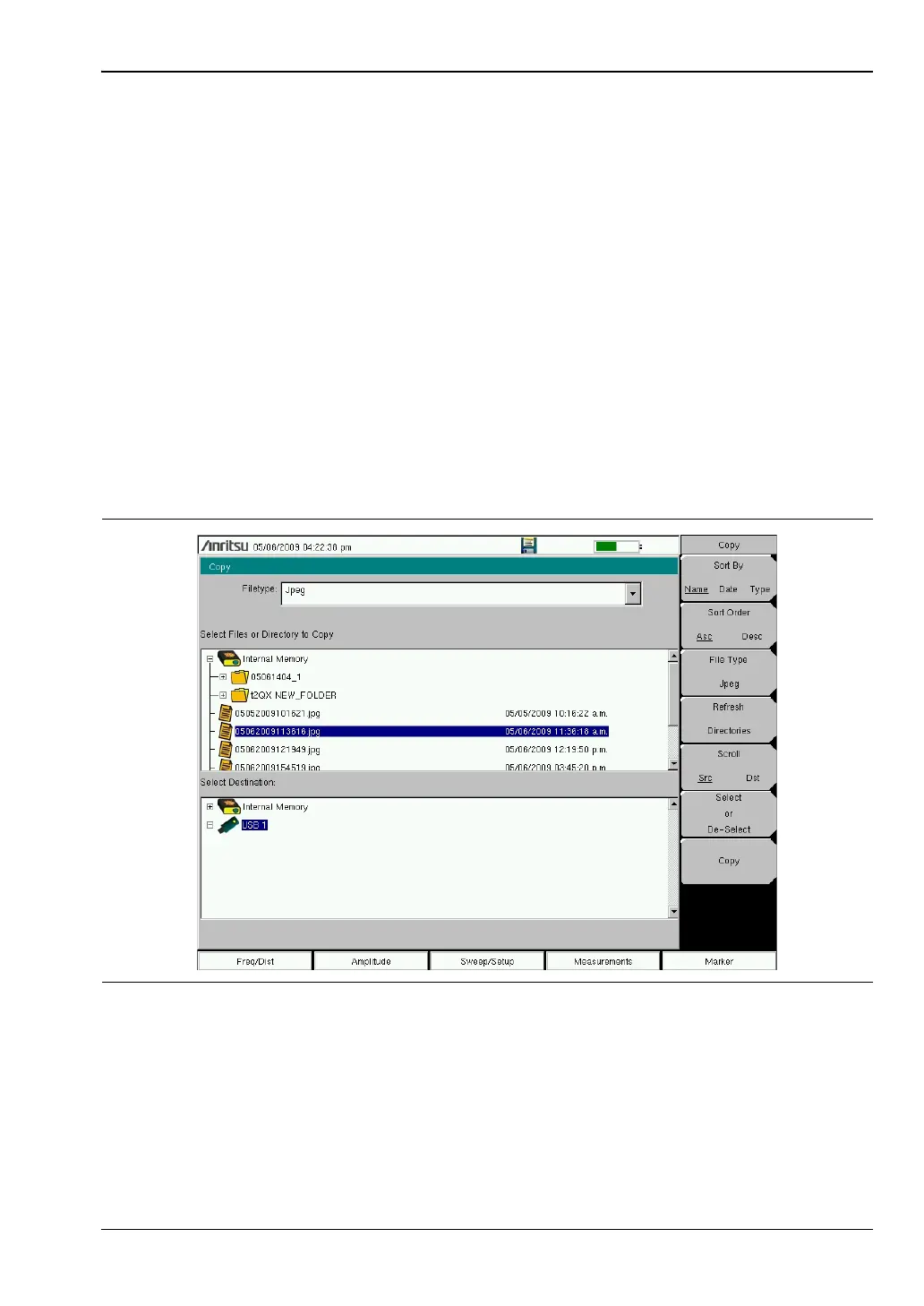

Figure 4-3. Copy Dialog Box
