General Information 1-15 Battery Replacement
MS20xxB UG PN: 10580-00301 Rev. D 1-9
1-15 Battery Replacement
The battery can be replaced without the use of tools. The battery compartment is located on
the lower left side of the instrument (when you are facing the measurement display). Refer to
Figure 1-5. To remove the battery:
1. Slide the catch toward the bottom of the instrument.
2. Tilt the top of the door away from the unit.
3. Lift out the battery door.
4. Remove the battery pack from the instrument by grabbing the battery lanyard and
pulling out.
Replacement is the opposite of removal. The battery key side (slot below the contacts) must be
facing the front on the unit and slides in first. Press the battery inward firmly to seat the
contacts, then reinstall the door.
Note
When inserting the battery, the battery label must face the back of the instrument,
and the guide slot on the battery must be below the contacts. If the battery door
does not latch closed, the battery may be inserted incorrectly.

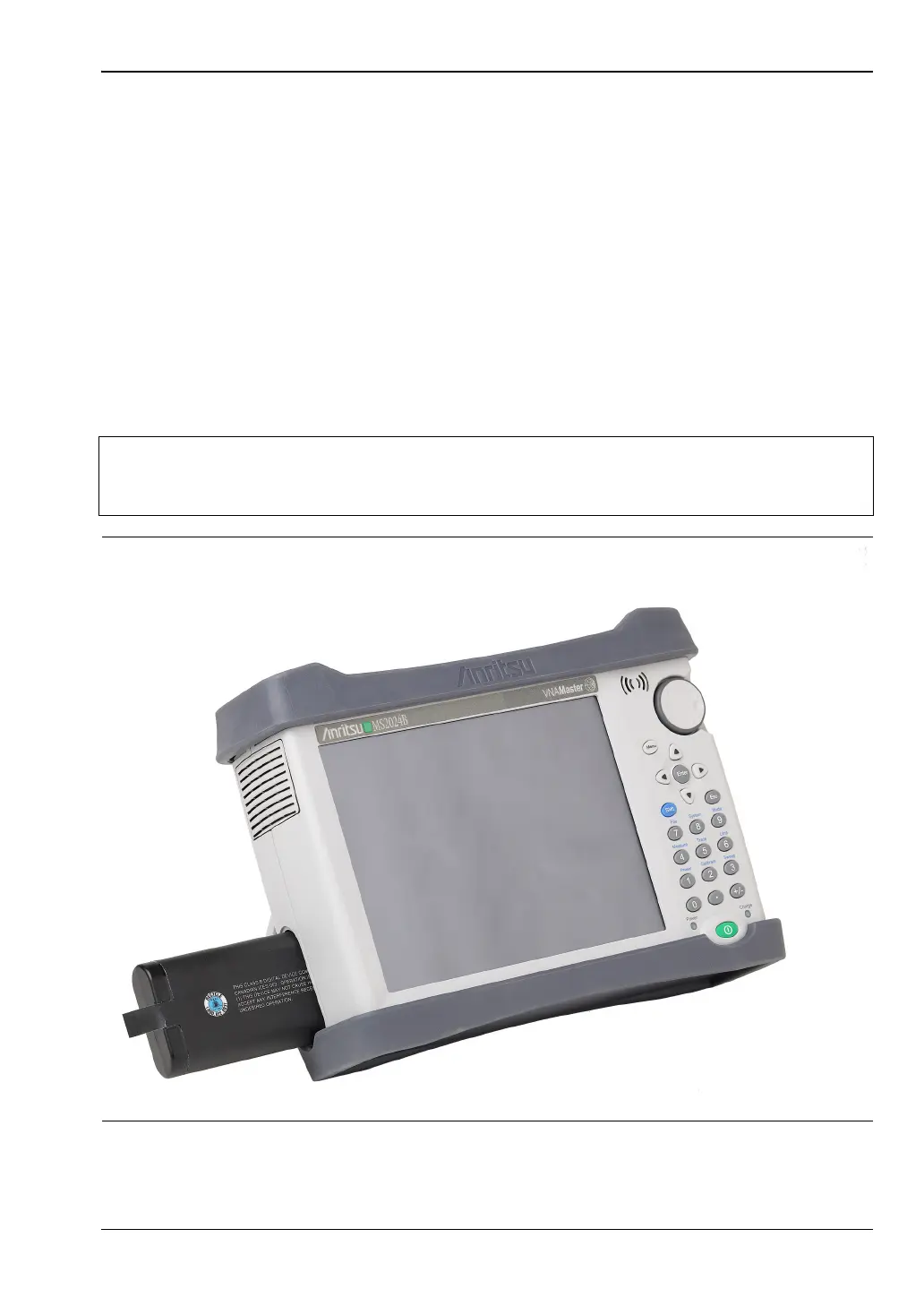

Figure 1-5. Battery Compartment
