Instrument Overview 2-10 Mode Selector Menu
MS20xxB UG PN: 10580-00301 Rev. D 2-21
2-10 Mode Selector Menu
To access the functions under the Mode menu, press the Shift key, then the Mode (9) key. Use
the directional arrow keys, the rotary knob, or the touch screen to highlight the selection, and
press the Enter key to select. The list of modes that appear in this menu varies depending
upon the options that are installed and activated in the instrument. Figure 2-16 is an
example of the Mode menu. Your instrument may not show the same list. The current mode is
displayed below the battery symbol.
The Menu key is another option to quickly change measurement modes. Press the Menu key
then select one of the Measurement icons in the top two rows (Figure 2-2 on page 2-4).

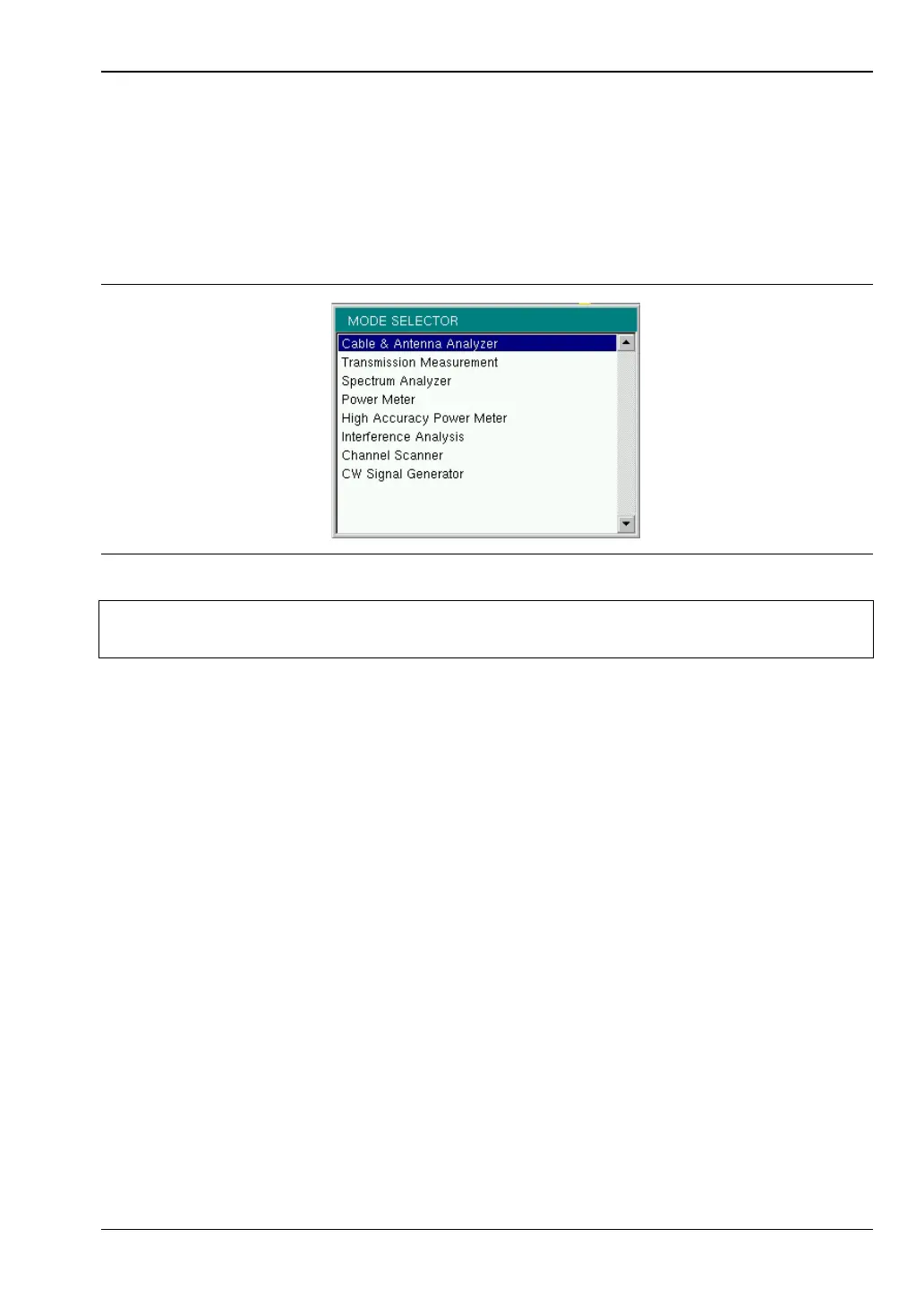

Figure 2-16. Mode Selector Menu
Note
The display of the Mode Selector varies depending on VNA Master model and
installed options.
