File Management 4-3 Managing Files
MS20xxB UG PN: 10580-00301 Rev. D 4-3
Save Dialog Box
The save dialog box (Figure 4-1) is used to store files on the internal memory or an external
flash drive. The file type, file name, and save location are set starting with this display. Refer
to “Save Menu” on page 4-9 and “Save Location Menu” on page 4-10 for details.
Quick Name Keys
Quick Name keys (located below the keyboard in Figure 4-1) allow you to enter quick names
for frequently used parts of file measurement names. To edit the keys, press the Shift key,
then the File (7) key. Press Save then the Change Quick Name key, and select one of the
Quick Names for editing. Press Enter and enter the new name for the key. Press Enter again,
and the new name is displayed on the Quick Name key.
When entering filenames, use the quick name keys in any order in combination with the
keyboard to create measurement filenames.

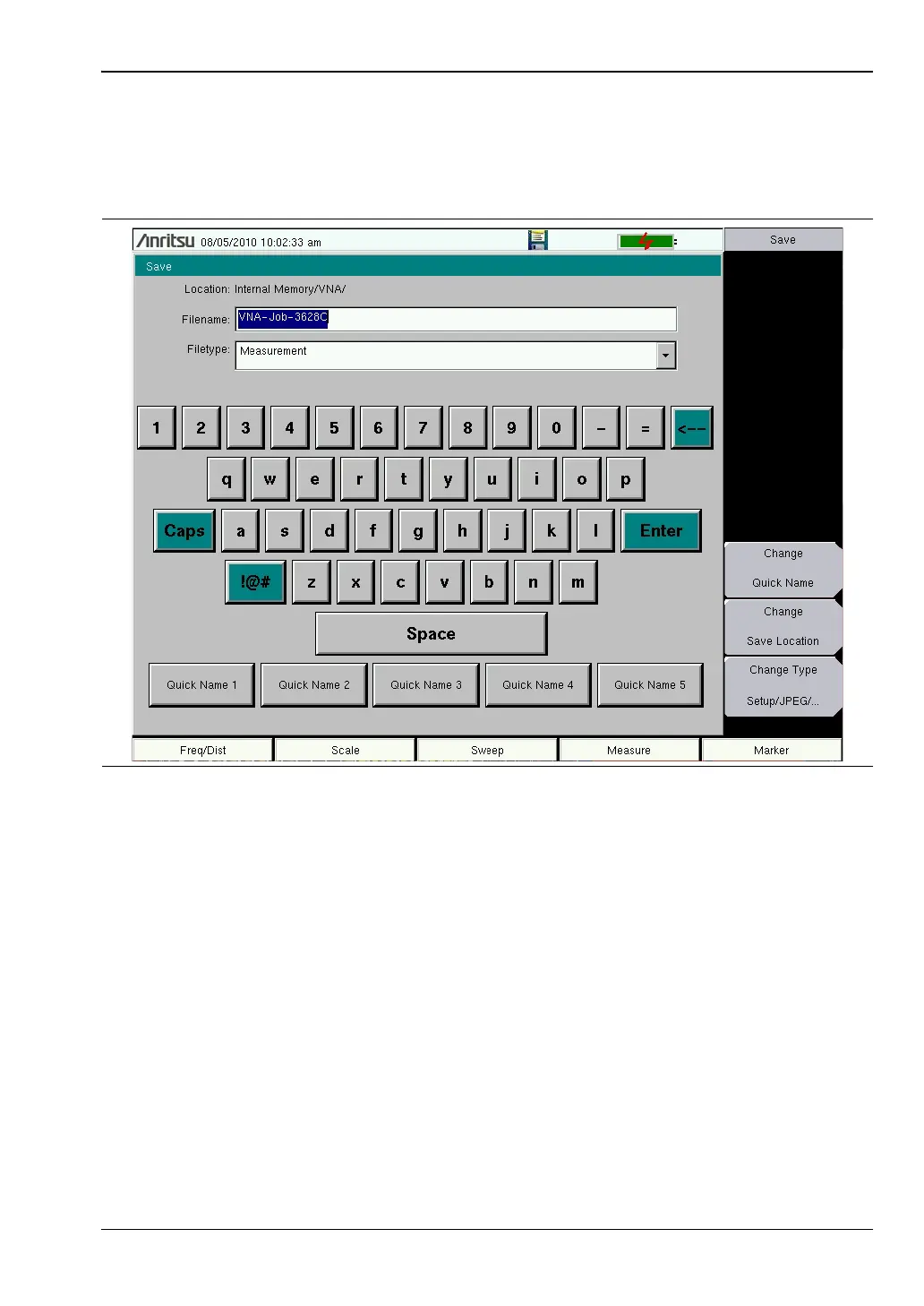

Figure 4-1. Save Dialog Box
