Anritsu VNA Master MS2024B User Manual

2-5 Test Panel Connector Overview Instrument Overview
2-12 PN: 10580-00301 Rev. D MS20xxB UG
2-5 Test Panel Connector Overview
MS2024B and MS2025B

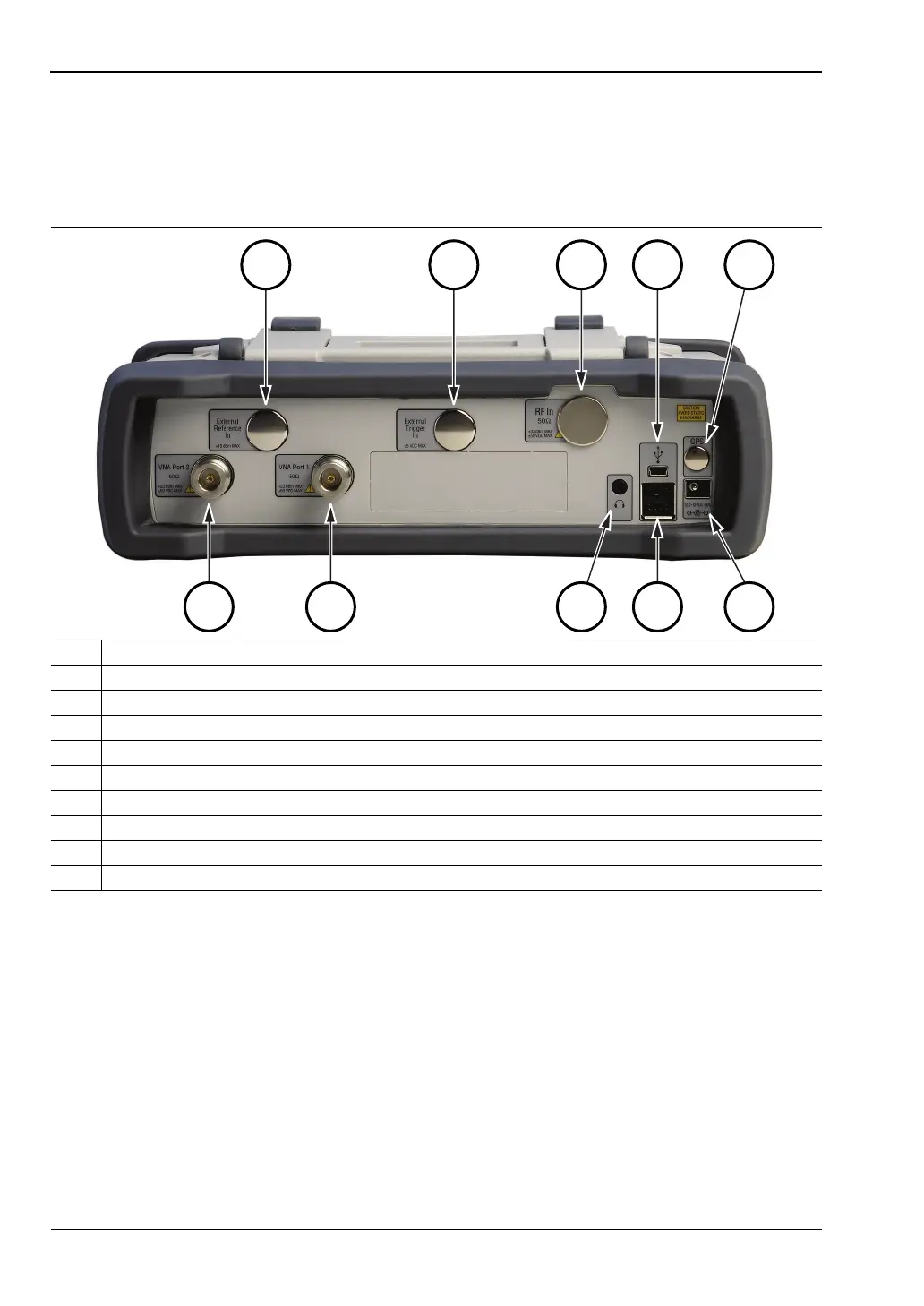

Test panel connectors for the VNA Master MS2024B are shown in Figure 2-8.
1 External Reference In (not installed in MS202xB models)
2 External Trigger In (not installed in MS202xB models)
3 RF In (not installed in MS202xB models)
4 USB Mini-B (Full Speed, USB 2.0)
5 GPS Antenna (location when installed with Option 31))
6 External Power
7 USB Type A (Full Speed, USB 2.0)
8 Headphone
9 VNA Port 1 50 ohm (Green LED indicates the Port is Transmitting Power)
10 VNA Port 2 50 ohm (Green LED indicates the Port is Transmitting Power)
Figure 2-8. MS2024B Test Panel Connectors
1
3
7
9
8
2
5
4
6
10
