5-4 Application Options Menu (VNA Mode)
Key Sequence: Shift, System (8)>Application Options
Standard VNA menus selected.
Units
mft:Press this soft key (submenu key) to toggle the units setting to metric
(meters, or m) or to U.S. (feet, or ft). Press Enter to accept the changes, or
press the Esc key to return to normal operation without changing the setting.
Trace Label
On Off: Press this soft key (submenu key) to toggle the trace labels On or
Off.
Meas Gain Range: Press this soft key to open the “Mode (Meas Gain
Range) Menu (VNA Mode)”. Then select Auto or Fixed.
Trace Label
On Off: Press this submenu key to toggle between Field (a simplified
subset of the standard VNA menu structure) and VNA (standard menu
structure.
Back: Press this soft key to return to the “System Menu” on page 5-3.

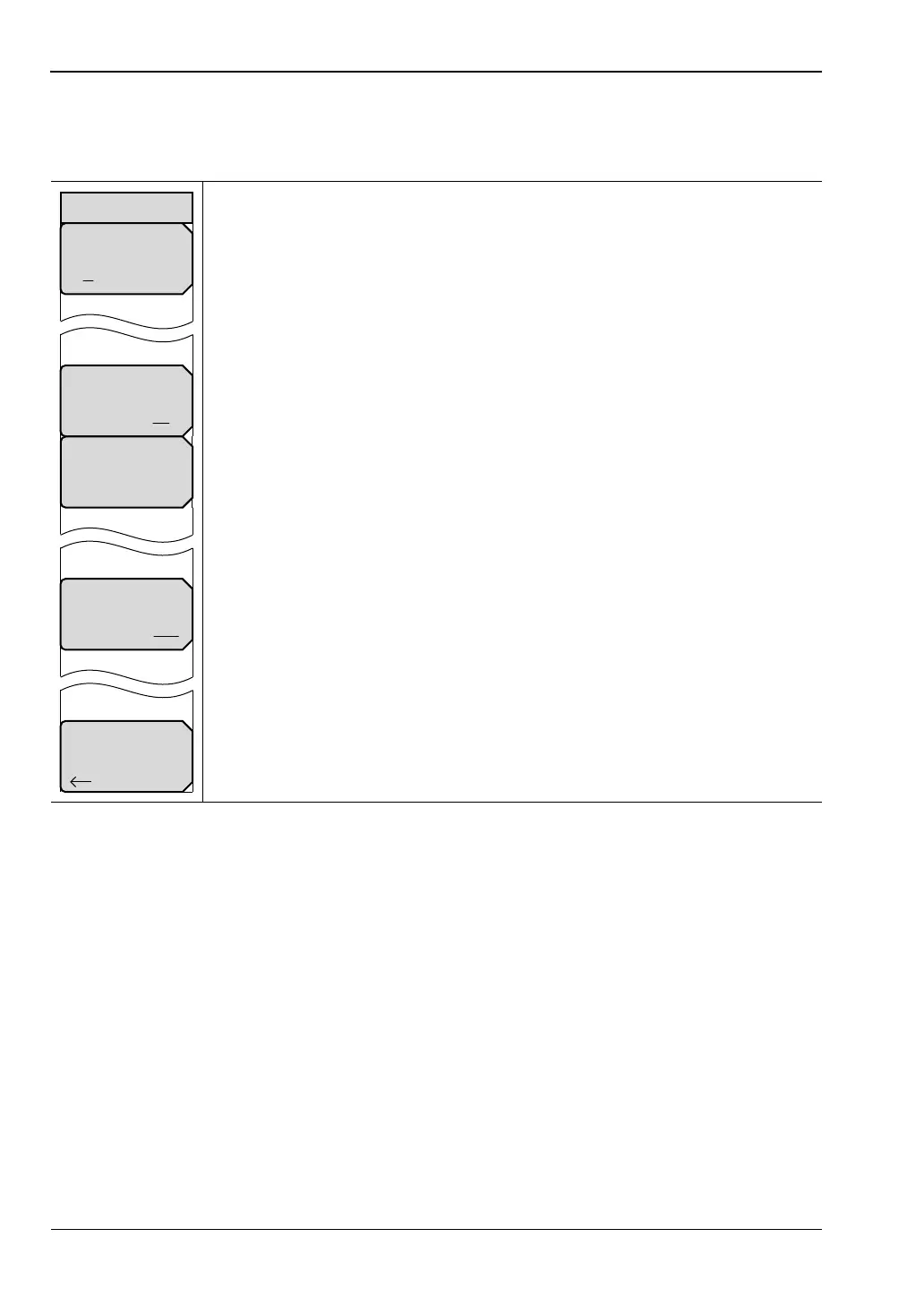

Figure 5-6. Application Options Menu (VNA Mode) (Sheet 1 of 2)
Back
Options
Units
m ft
Trace Label
On Off
Meas Menu
Field VNA
Meas Gain Range
Auto
To Next Page
