Anritsu VNA Master MS2024B - MS2034 B and MS2035 B; External Power

Instrument Overview 2-5 Test Panel Connector Overview
MS20xxB UG PN: 10580-00301 Rev. D 2-13
MS2034B and MS2035B
Test panel connectors for the VNA Master MS2035B are shown in Figure 2-9.
External Power
The external power connector (refer to item “6” in Figure 2-9) is used to power the unit and for
battery charging. Input is 12 VDC to 15 VDC at up to 5.0 A. The green flashing Power LED
near the power switch indicates that the instrument has external power.
1 External Reference In
2 External Trigger In
3RFIn
4 USB Mini-B (Full Speed, USB 2.0)
5 GPS Antenna (with Option 31)
6 External Power
7 USB Type A (Full Speed, USB 2.0)
8 Headphone
9 Ethernet (with Option 411)
10 VNA Port 1 50 ohm (Green LED indicates the Port is Transmitting Power)
11 VNA Port 2 50 ohm (Green LED indicates the Port is Transmitting Power)

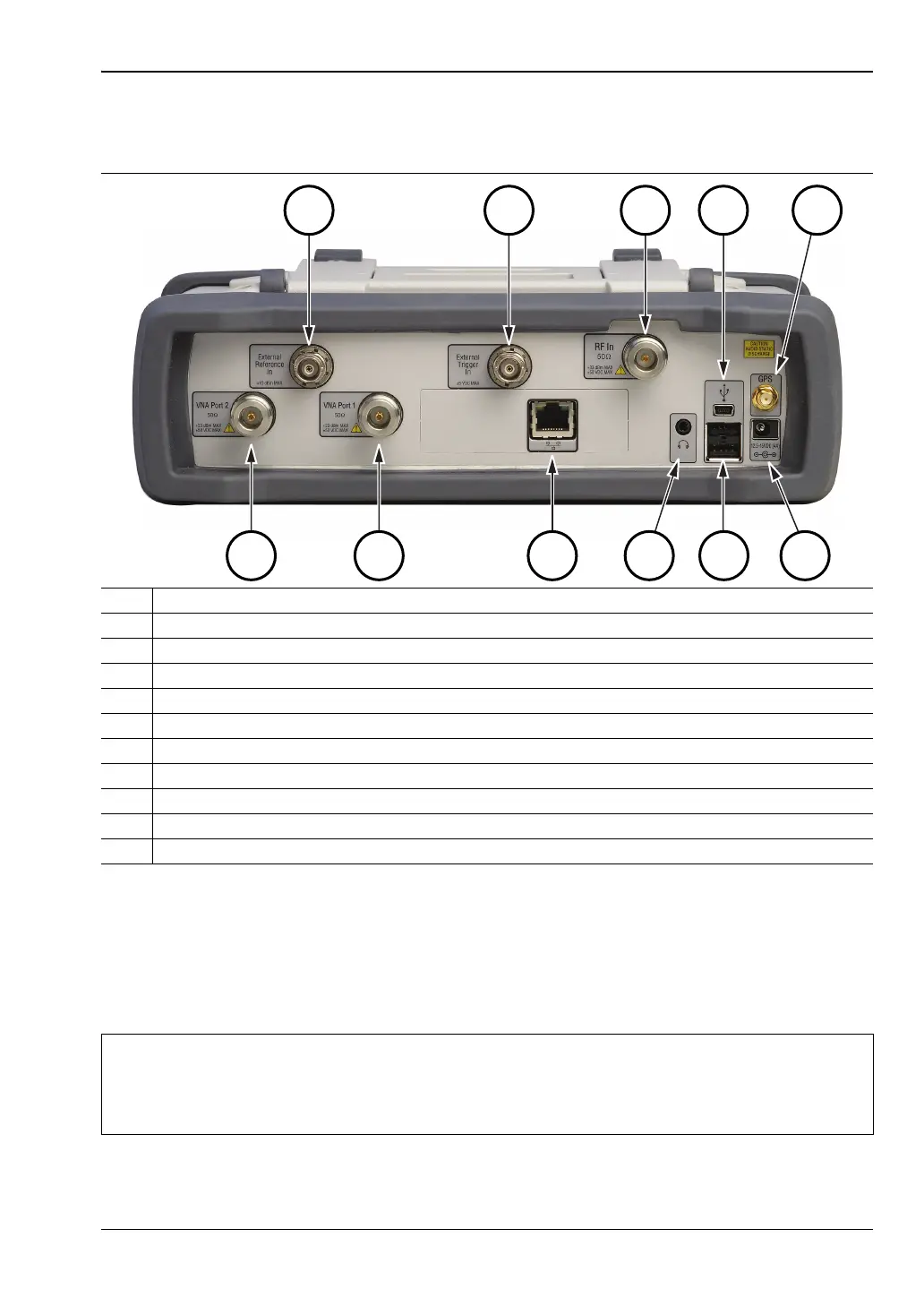

Figure 2-9. MS2035B Test Panel Connectors
Warning
When using the AC-DC Adapter, always use a three-wire power cable that is
connected to a three-wire power line outlet. If power is supplied without grounding
the equipment in this manner, then the user is at risk of receiving a severe or fatal
electric shock.
