6. Mesh filter for intake
7. TE flanged screw
8. Pin
9. Inner and outer rotors
10.O-ring
11.Oil pump body
12.Oil seal
13.Thrust washer
14.Oil pump gear Z=12
15.Thrust washer
16.Seeger ring
17.Pin
18.Ball bearing cage
19.Transmission gear Z=19
20.Thrust washer
21.Seeger ring
22.Oil seal
Removing

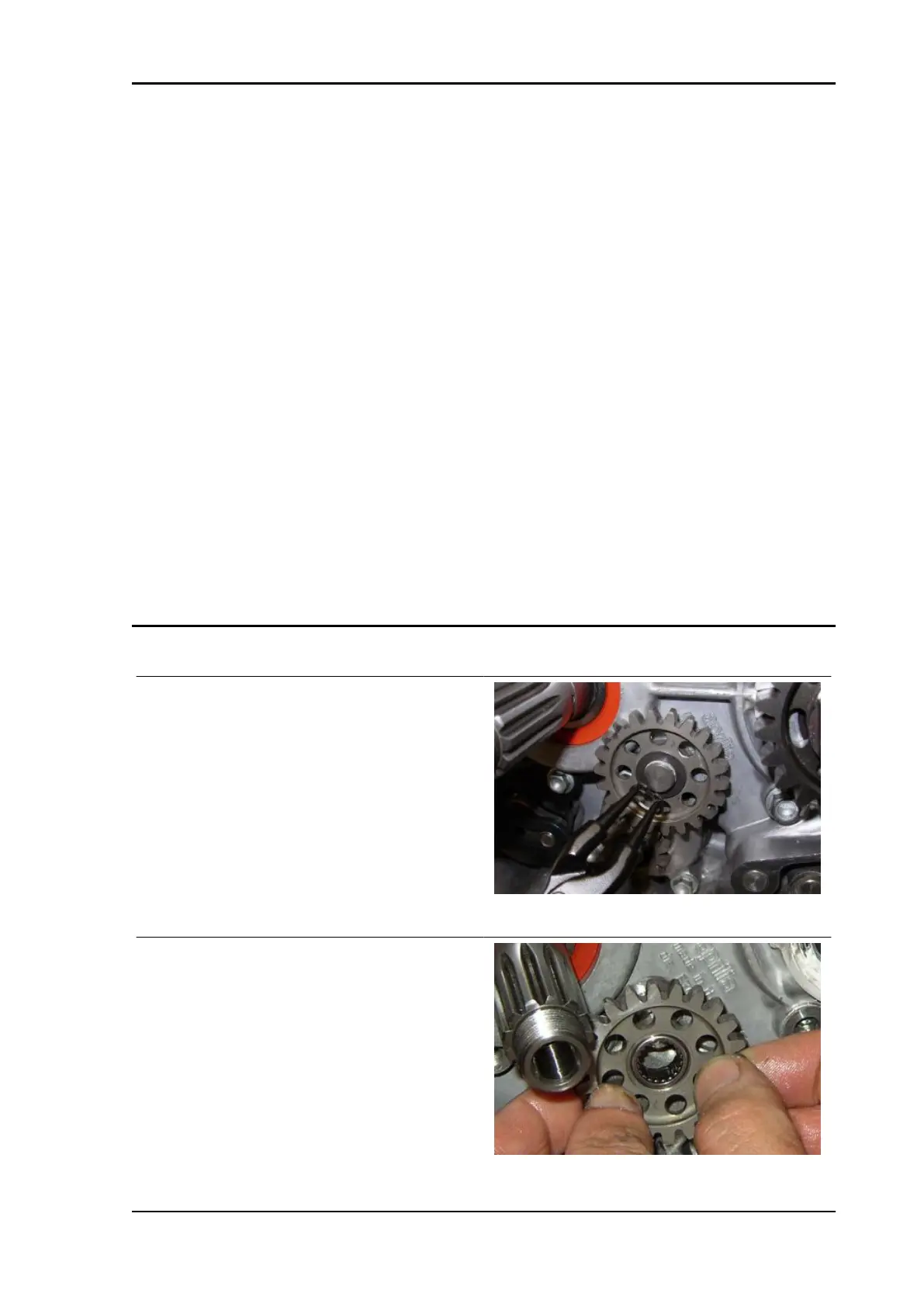

EXTERNAL PUMP REMOVAL
•
Before removing the components,
place a container of suitable capacity
underneath the engine.
•
Remove the clutch
•
Remove the right crankcase half cover
•
Remove the Seeger ring fixing the oil
pump transmission gear and collect
the shim washer.
•
Remove the oil pump transmission
gear paying attention to the internal
sliding rollers.
