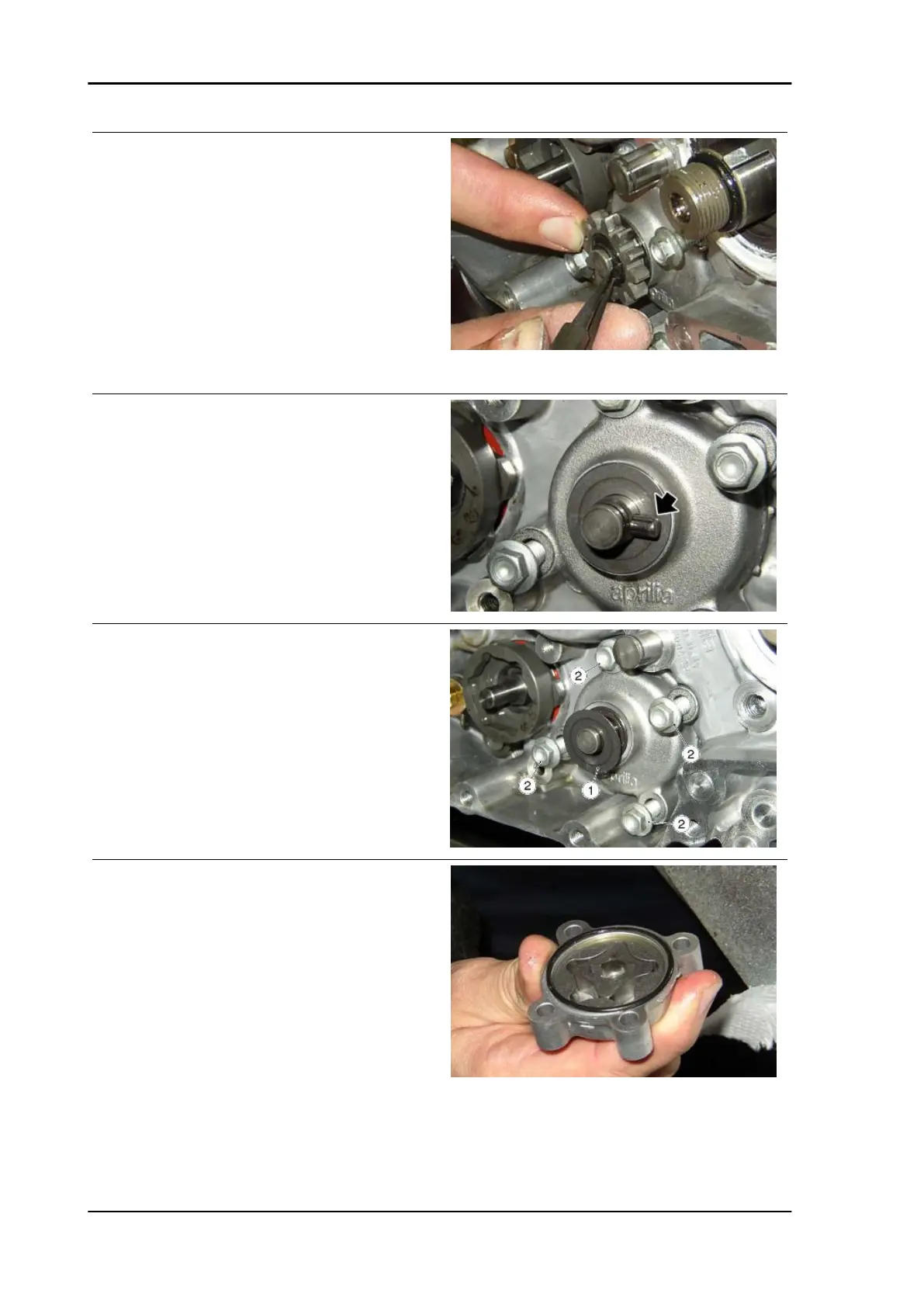

Remove the oil pump gear fixing Seeg-
er ring.
•
Remove the oil pump gear and collect the shim washer.
•
Remove the transmission roller of the
oil pump gear.
•
Remove the shim washer (1).
•
Undo and remove the four fixing
screws (2).
•
Remove the complete oil pump.
