APRILIA MXV 450 - Page 147

•

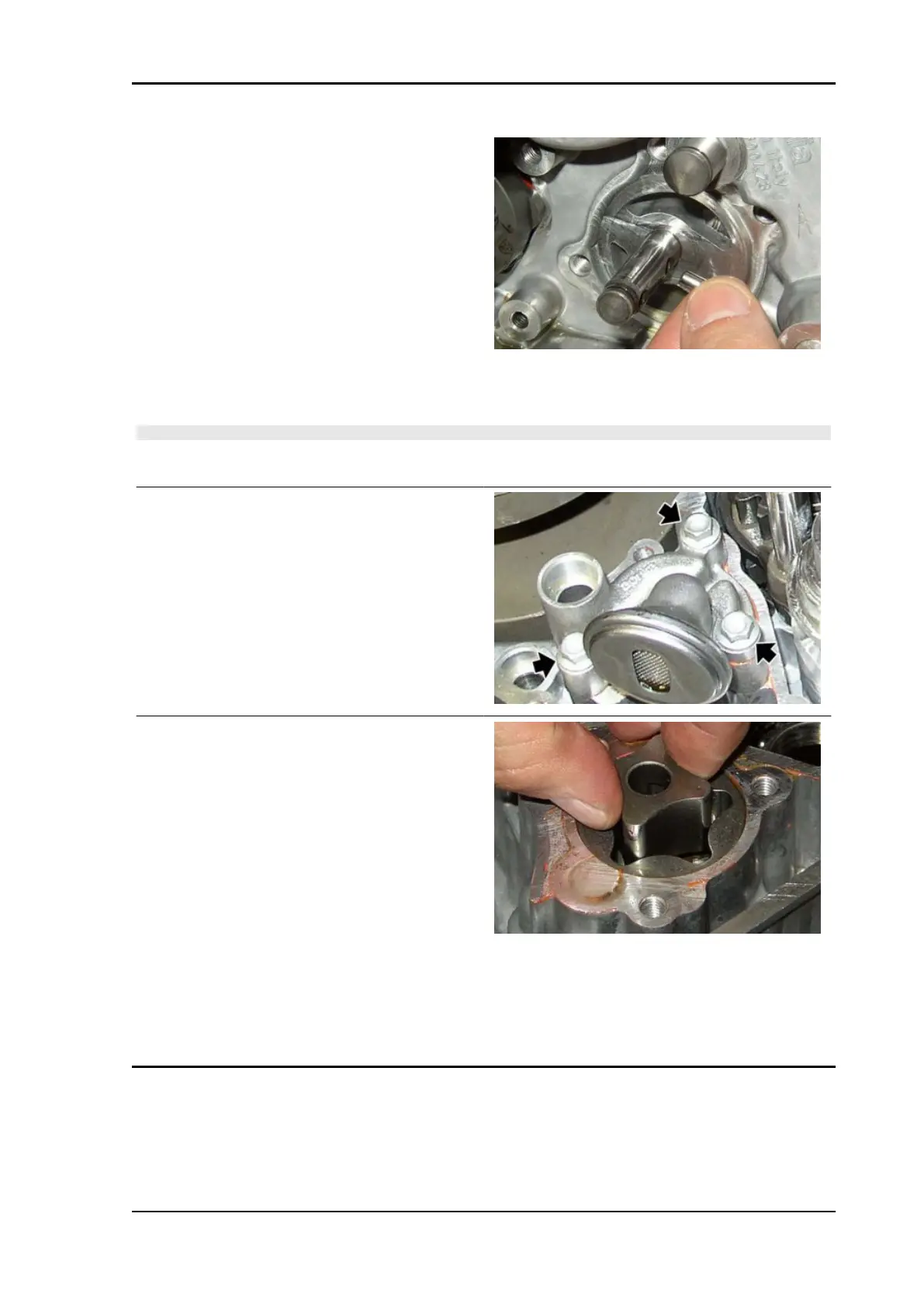

Collect the internal transmission roller of the oil pump.
INTERNAL PUMP REMOVAL
NOTE
TO DISASSEMBLE THE INTERNAL SECTION OF THE OIL PUMP IT IS NECESSARY TO DISAS-
SEMBLE THE CRANKCASE AND REMOVE THE EXTERNAL PUMP.
•
Undo and remove the three fixing
screws.
•
Remove the cover and the strum box.
•
Remove the pump rotor and slide off
the stator.
•
Collect the transmission roller.
•
Remove the oil pump shaft.
