Start-up pedal fitting
•

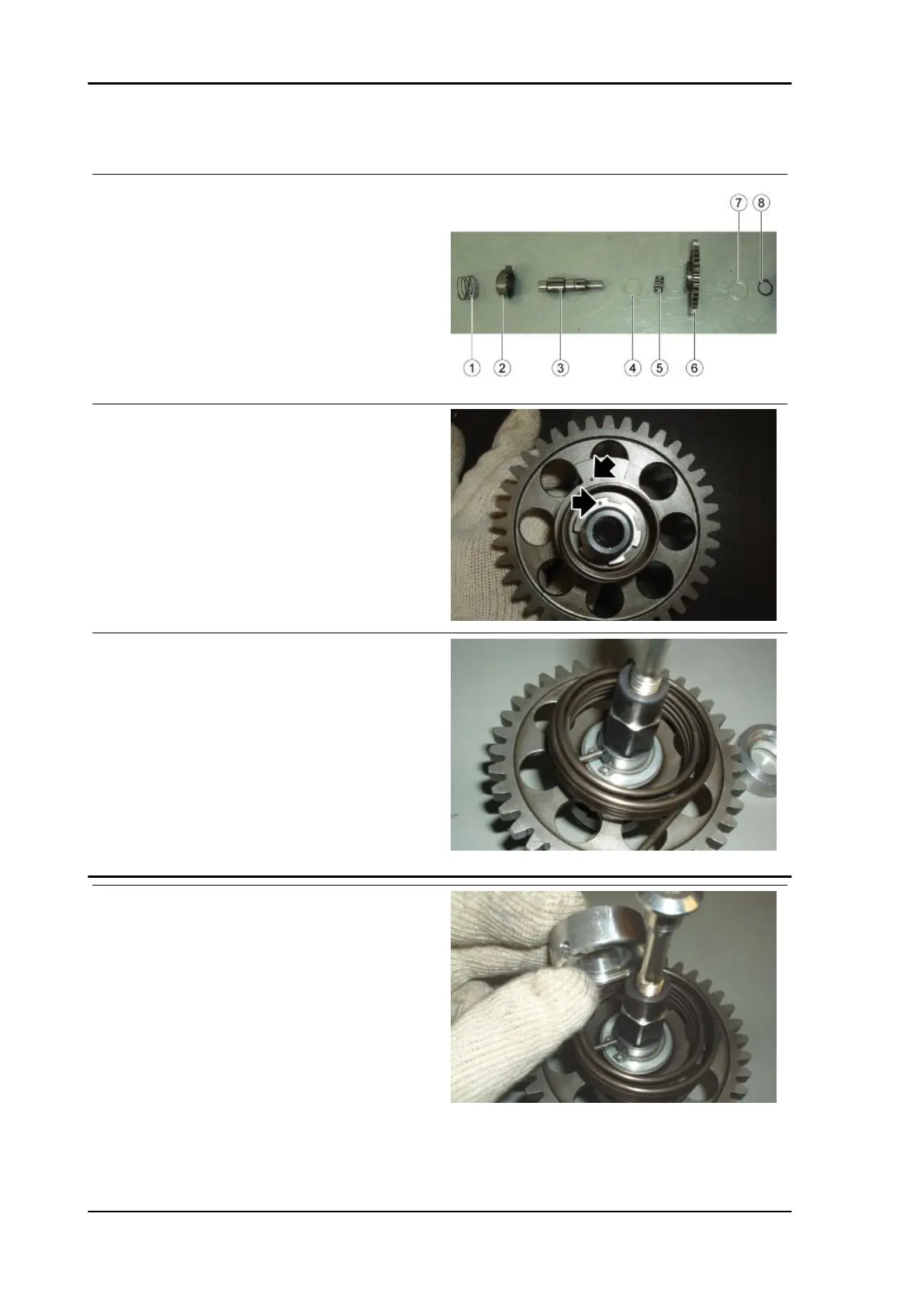

On the shaft (3), place the shim washer
(4), the ball bearing cage (5), the tooth-
ed wheel (6), the shim washer (7) and
the Seeger ring (8).
•
Working from the left side of the gear,
fit the start-up sprocket (2) and the
spring (1).
•
Align the gear reference with that of the
grooved shaft.
•
Introduce the spring into the grooved
shaft hole.
•
Introduce the locking bushing.
•
Fit the kick-start pedal system on the
engine.
•
Lock the spring with the screw.
