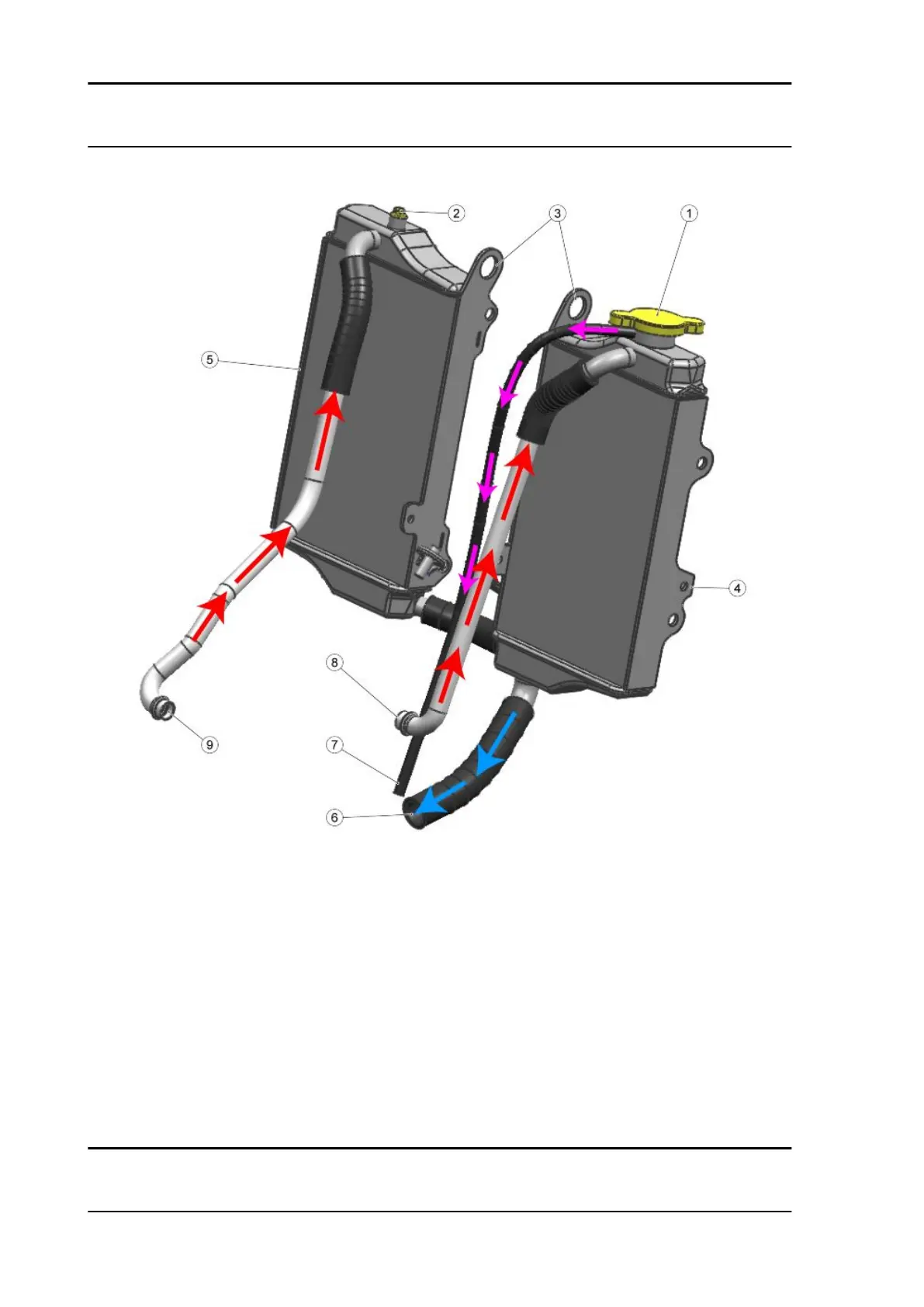

Circuit diagram
Key:
1. Radiator cap
2. Air bleed
3. Holes for chassis retainer
4. Right radiator
5. Left radiator
6. Delivery pipe to the pump
7. Breather pipe
8. Return pipe from the front head
9. Return pipe from the rear head
Cooling system MXV 450
COOL SYS - 204
