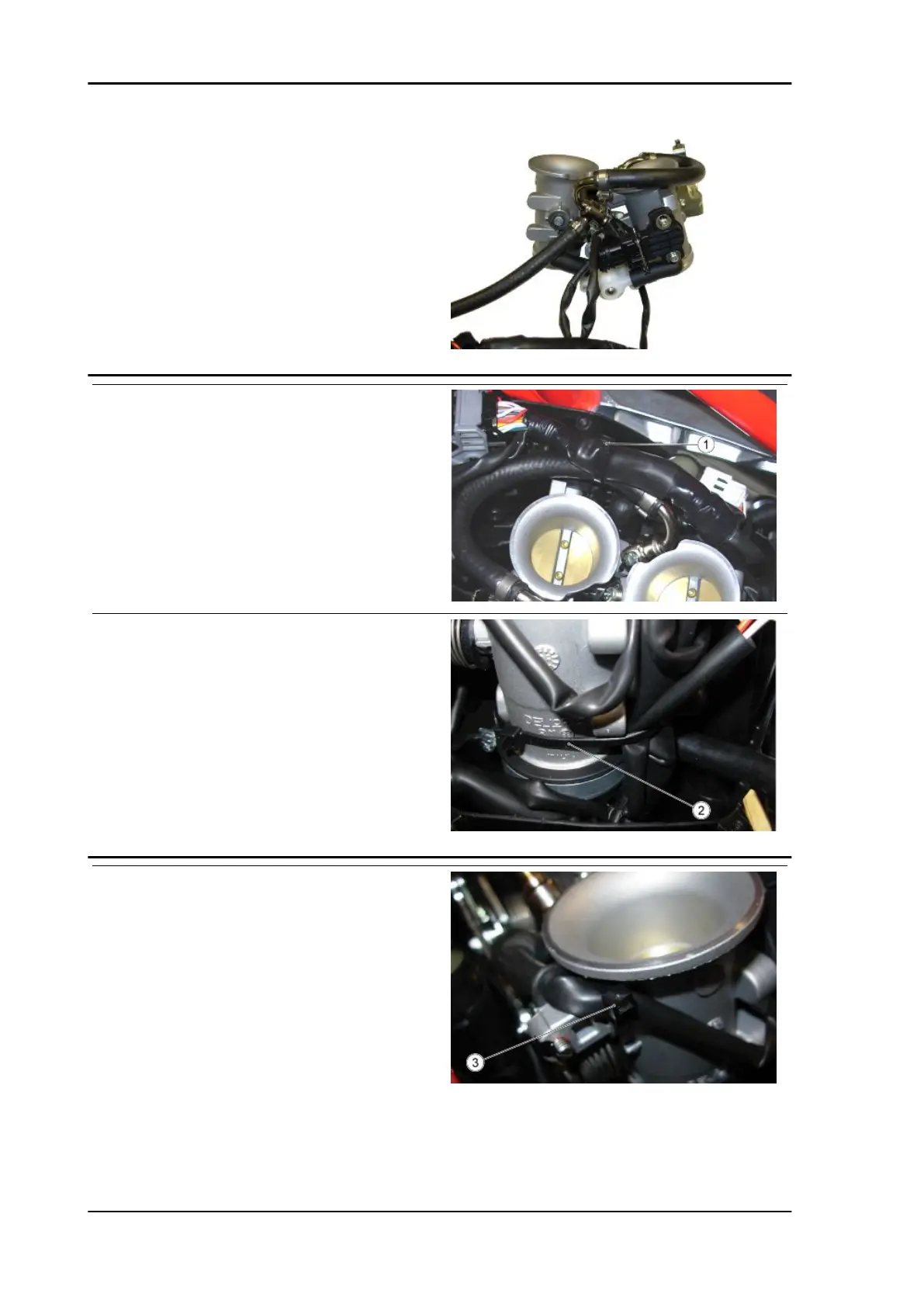

The main cable harness is locked with clamps at
two points:
1) On the injector connecting fuel pipe, laying the
cable harness towards the rear throttle body so as
to avoid excessive vertical extension that hinders
placing the cover.
2) On the rear throttle body along with the right coil
supply cable
Clamp (3) locks the connecting cable to the left in-
jector.
Electrical system MXV 450
ELE SYS - 48
