Conguring a Module Using Studio5000 Logix Designer
General settings

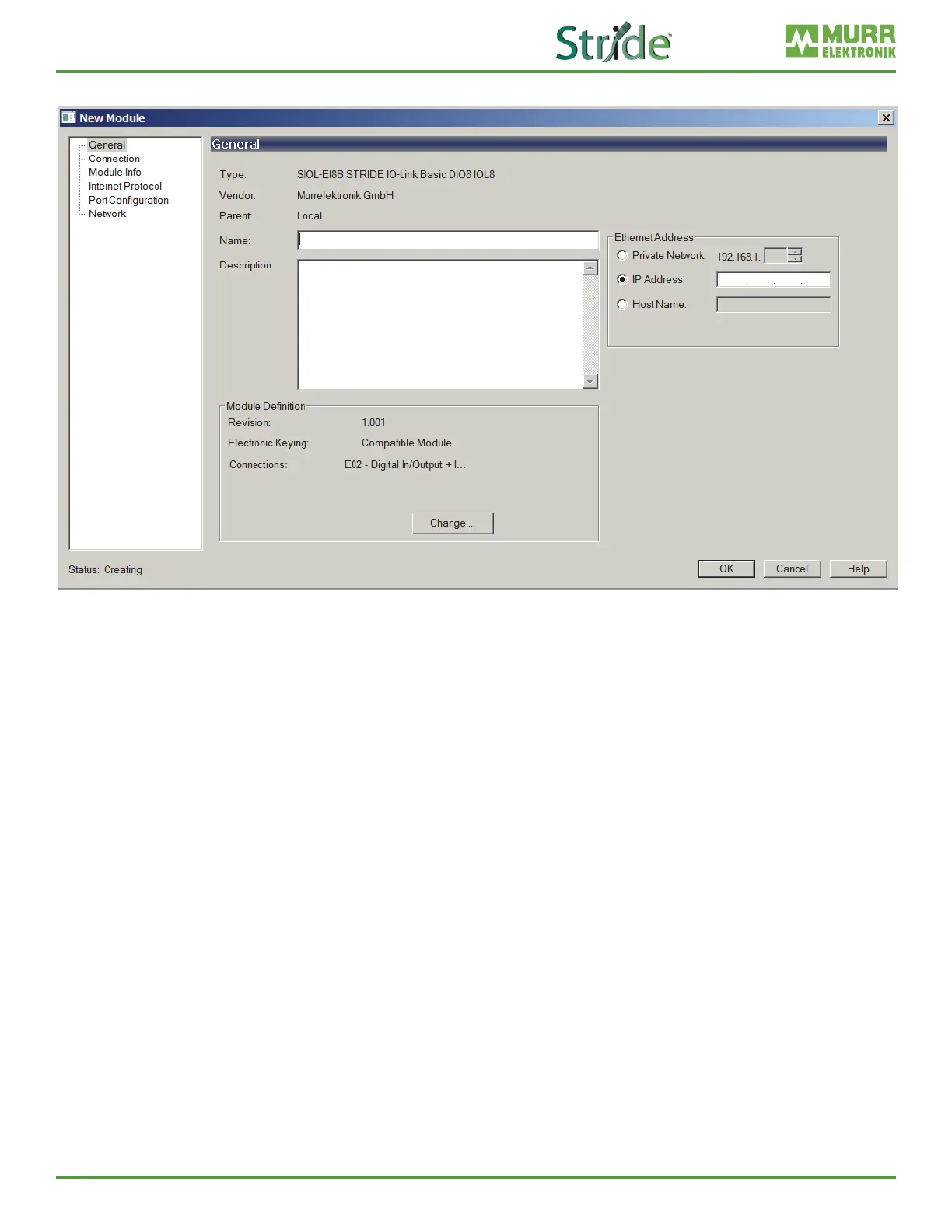

Fig. C-6: General settings.
In New Module | General
➔ Assign a unique module name.
➔ Assign the IP address.
In New Module | Connection
➔ Assign further settings, e.g. the RPI settings.
➔ Add the module to the network by pressing OK.
