SIOL-EI8B-USER-M
39
Startup Powered by
Version 1, May 2022

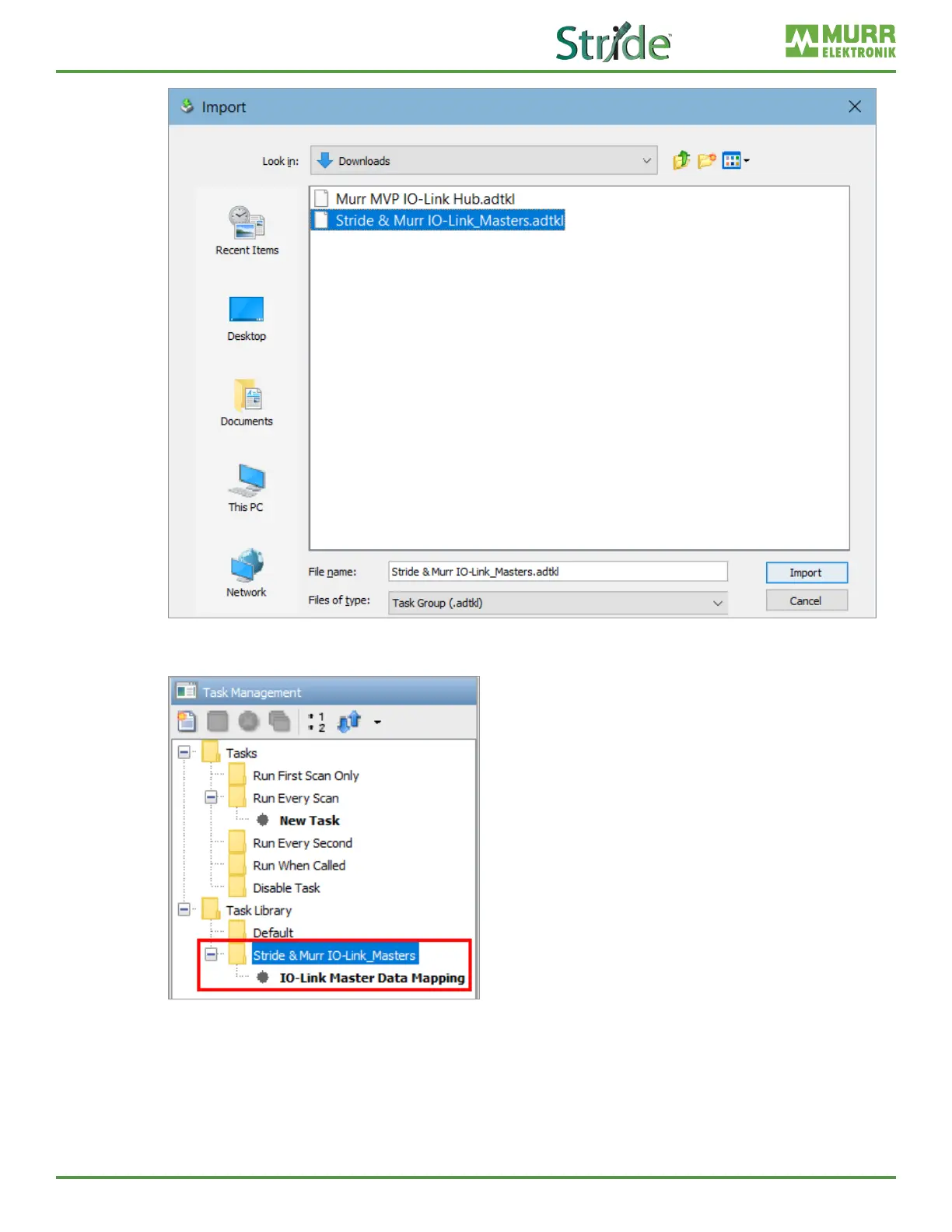

Fig. 7-14: Import Group – Stride & Murr IO-Link_Masters.adtkl.
Fig. 7-15: Task Library – IO-Link Master Group.
5. Drag the new task from the Task Library into the Run Every Scan task folder and click OK on the
Tag Conversion pop-up. The new task and associated tags have now been created. The next step is
to create the EtherNet/IP Device for the IO-Link Master module in hardware conguration.
