SIOL-EI8B-USER-M
42
Startup Powered by
Version 1, May 2022

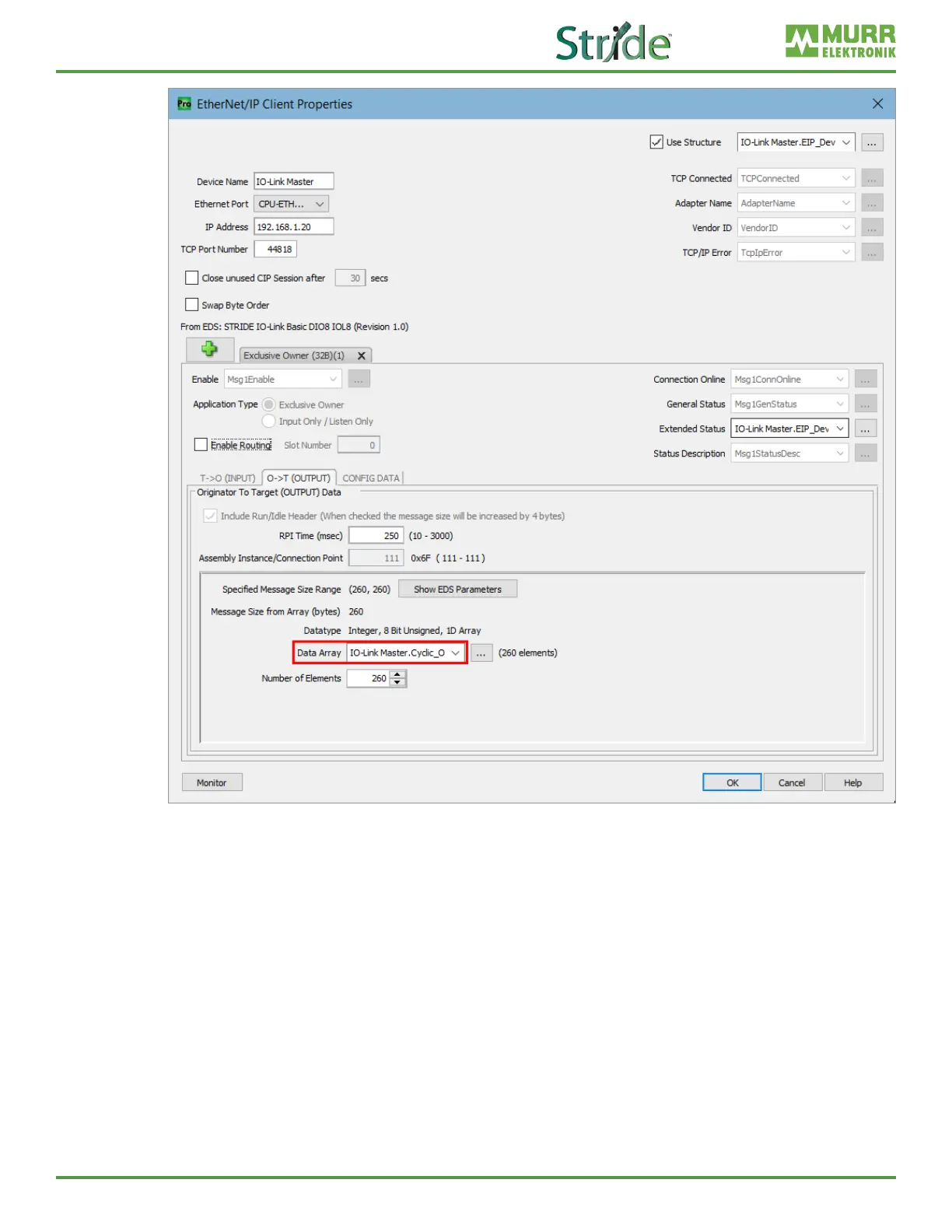

Fig. 7-18: EtherNet/IP Client Properties – IO-Link Master O->T Data Array.
8. Once all required eld and tag entries have been made, per step 7, click OK and the EtherNet/IP
Device will now appear in the hardware eld. You are now ready to setup the quick start code for
individual IO-Link eld devices. Steps 9 thru 11 will walk you through the process to setup a Murr
MVP IO-Link Hub.
