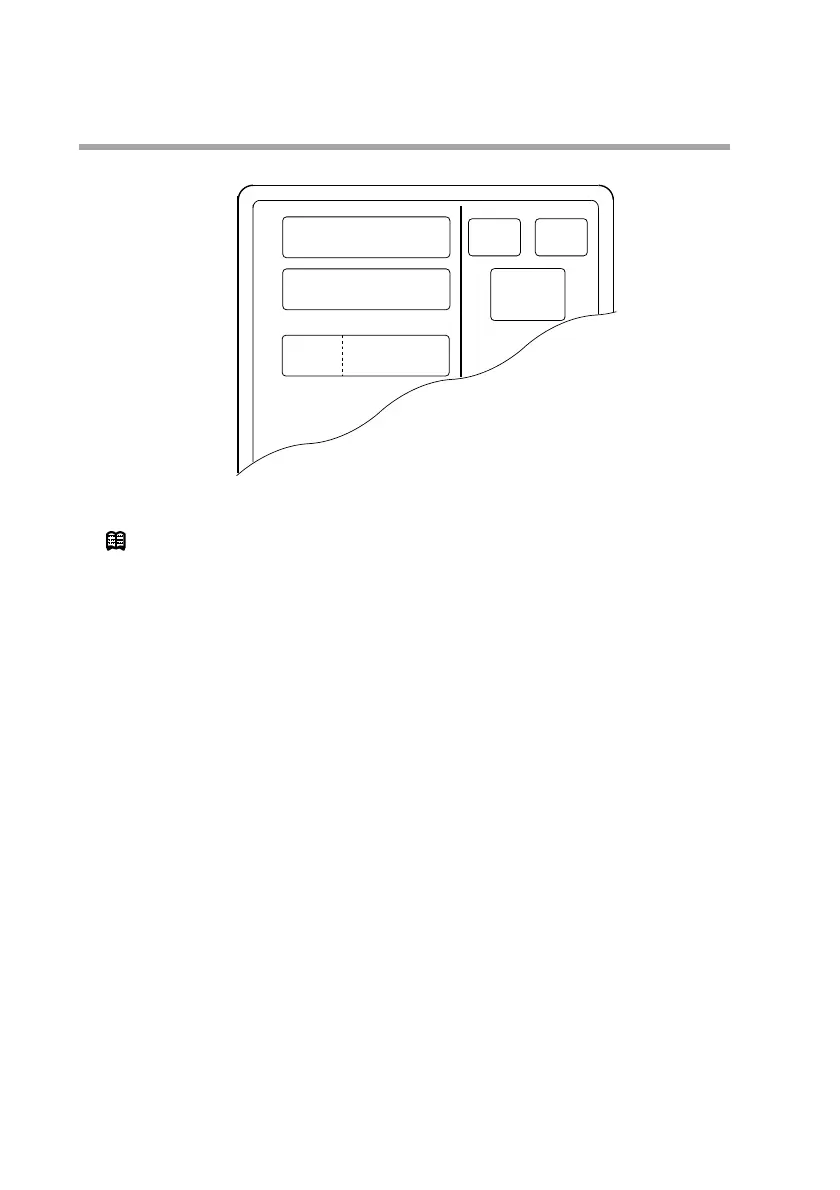

● Display
Segments that have not been set and unset values for SP and time are indicated by
“-----”.
NOTE
Event settings are displayed in the two rows of the message panel. Events 1 to 8
are displayed in the top row and events 9 to 16 are displayed in the lower row. The
meaning of the codes used are listed below.
- : event off
T : time event
P : PV/PV deviation rate event
D : Deviation/absolute deviation
M : MV event
S : SP event
C : code/time code event
SP
TM
PROG SEG
PROFILE
Program
number
Segment
number
Set SP value
Pattern trend
Set time value
RAMP
type
Event setting on/off
Chapter 8. PROGRAM SETUP
