Chapter 9. MEMORY CARD OPERATIONS
■ Procedures for saving PID parameters
This procedure saves PID parameters and constant value control data on a memory
card.
■ Procedures for saving event configuration data
This procedure saves event configuration data on a memory card.
■ Procedures for saving all parameters
This procedure saves all parameters on a memory card.

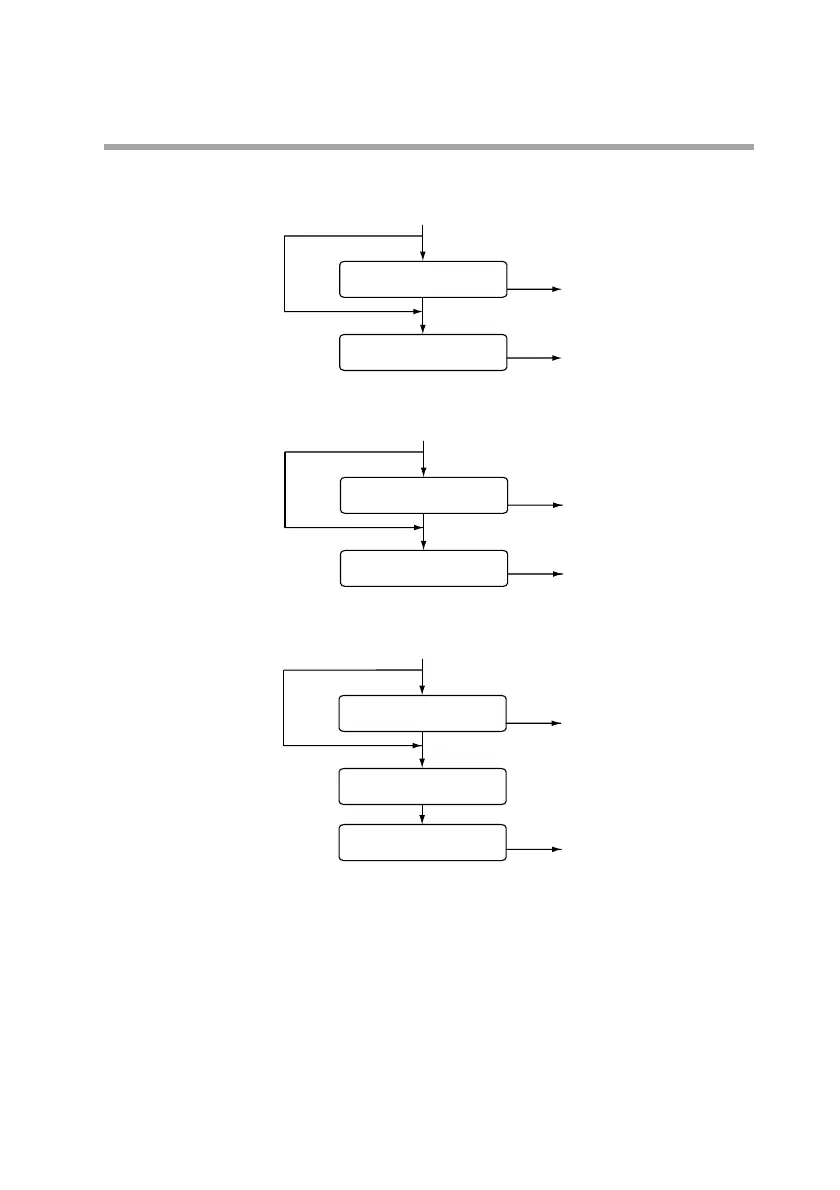

Data delete check
Delete Old Data
SAVE ?
Save advancing status
SAVE key
SET PARA PID EV
SAVE
DISP key
Normal display mode
(Save operation is not
performed.)
Characters for saved parameters disappear as
they are saved.
(SET: setup data, PARA: parameter, PID: PID
parameters and constant value control data,
EV: event configuration.)
(Displayed when there is data on the
card.)
Save complete
All Parameters
SAVE Good
DISP key
Normal display mode
Data delete check
Delete Old Data
SAVE ?
Save complete
SAVE key
EVENT Data
SAVE Good
DISP key
Normal display mode
(Save operation is not
performed.)
DISP key
Normal display mode
(Displayed when there is data on the
card.)
Data delete check
Delete Old Data
SAVE ?
Save complete
SAVE key
PID Data
SAVE Good
DISP key
Normal display mode
(Save operation is not
performed.)
DISP key
Normal display mode
(Displayed when there is data on the
card.)
