4. Lamp & lamp house
2

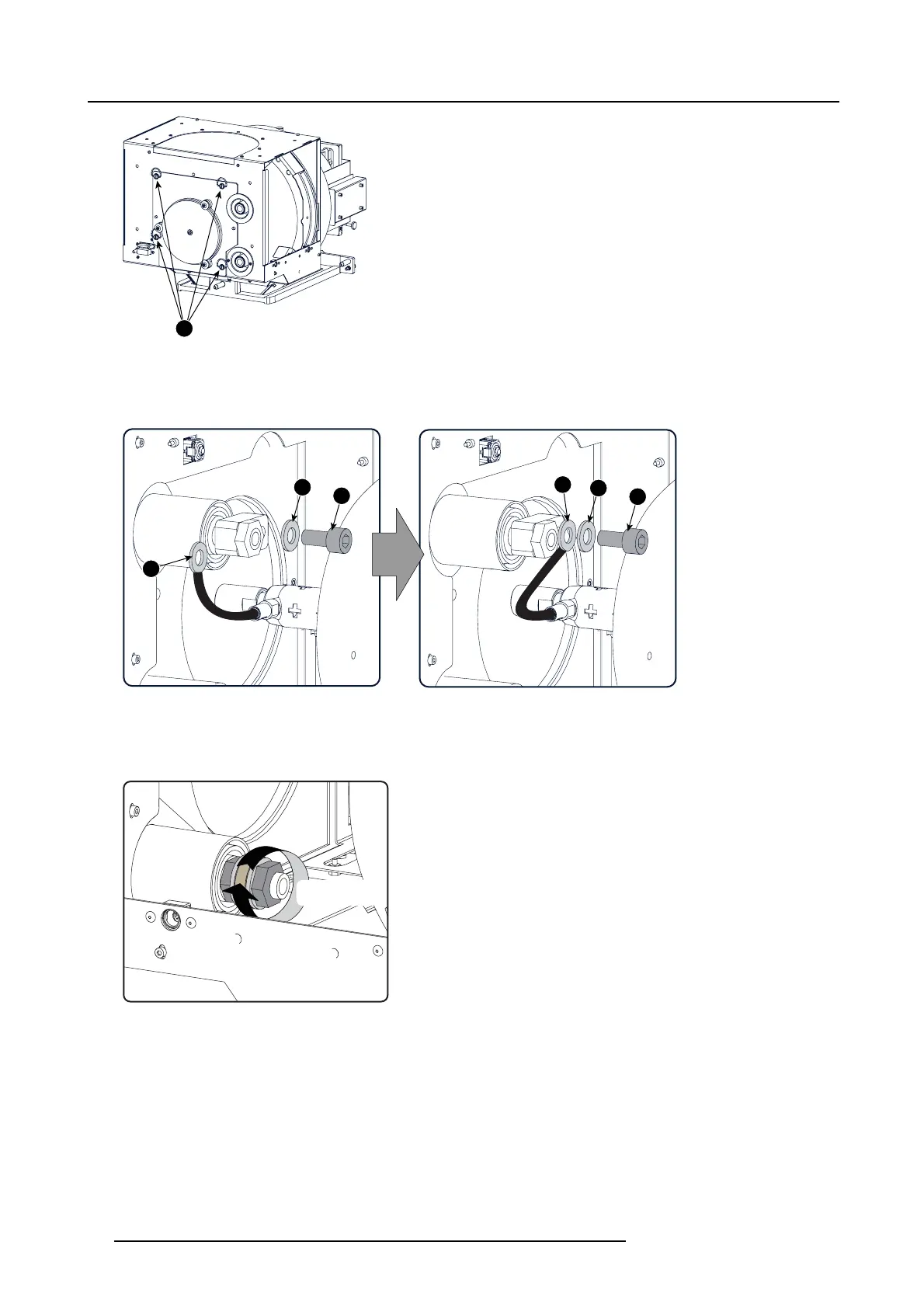

Image 4-17
Secure UV blocker
5. Install the anode wire lug (reference 1) upon the a node socket inside the Lamp House as illustrated. Use an Allen torque key set
to 9Nm(6.64lbf*ft) to secure the bolt (reference 3). Place a flat washer (reference 2 between the bolt and the wire lug.
Warning: Make s ure that there is no tension on the anode wire of the xenon lamp.
1
2
3
1
2
3
9 Nm
Image 4-18
6. C heck the cathode connection inside the lamp house. Use an 22 mm open-end wrench to hold the fi rst nut while fastening the
second nut on the rod with a torque of 25 Nm (18,4 lbf*ft) using a torque wrench with 22 mm hexagon socket. Ensure that there
is a flat was her at both sides of the wire lug.
Caution: These cathode connections must be checked with every lam p chan ge!
25 Nm
Image 4-19
Cathode connection check
7. Secure the xenon lamp cathode with the hexagon socket head c ap screw (reference 9) and washer (reference 10) as illustrated.
Fasten the sc rew with a torque of 5Nm(3,7lbf*ft).Useatorquewrenchwitha5mmAllensocket.
Caution: Make s ure that both pins (reference 11) of the cathode adapter rem ain engaged in the foreseen slots
38
R59770495 DP2K-23B 30/04/2010
